Bridge Rectifiers

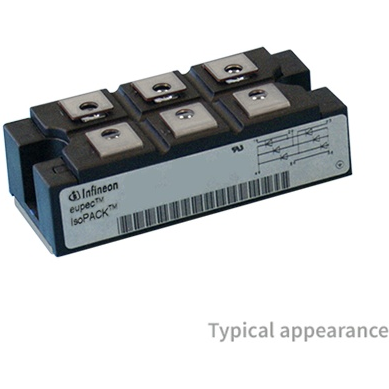

DDB6U85N16LHOSA1

Diode Rectifier Bridge Single 1.6KV 104A 6-Pin ISOPACK-1 Tray

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8541.10.00.80

• Automotive

  No

• PPAP

  No

• Bridge Type

  Three Phase

• Configuration

  Single

• Peak Reverse Repetitive Voltage (V)

  1600

• Peak Average Forward Current (A)

  104

• Peak Non-Repetitive Forward Surge Current (A)

  650

• Maximum Forward Voltage (V)

  1.44@100A

• Peak Reverse Current (uA)

  5000

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  150

• Mounting

  Screw

• Package Height

  30 mm

• Package Width

  42 mm

• Package Length

  94 mm

• PCB changed

  6

• Supplier Package

  ISOPACK-1

• Pin Count

  6
