LTM4658 DC to DC Converter and Switching Regulator Module 0.985V to 1.015V Output Demonstration Circuit
LTM4658: Low Vin, High-Efficiency 10A Step-Down μModule Regulator
The LTM4658 provides a 10A output current with an integrated inductor in a tiny 4 mm x 4 mm package. It has excellent efficiency of 95% at 5Vin to 3.3Vout.
Key Features and Benefits:
- • Increase load current up to 60A by current sharing 6 LTM4658 μModule Regulators
- • Operate from low 2.25Vin without auxiliary 5V bias
- • Adjust Vout from 0.5V to 5.5V to regulate voltage for legacy and sub-10nm geometry digital ICs
Applications:
- • General Purpose
- • Aerospace and Defense
- • Communications: 5G
- • Healthcare
- • Industrial Automation
- • Instrumentation and Measurement

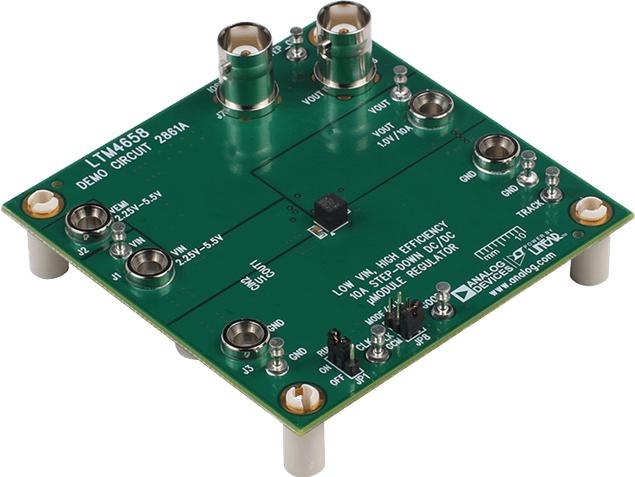

The LTM4658 can be evaluated with the DC2861A
Block Diagrams and Tables:
| Compliant | |
| EAR99 | |
| Active | |
| DC2861A | |
| Automotive | No |
| PPAP | No |
| Demonstration Circuit | |
| DC to DC Converter and Switching Regulator Module | |
| 1 | |
| 0.985 to 1.015 | |
| 10000 | |
| 2.25VDC to 5.5VDC | |
| 2000 | |
| 84.56 | |
| LTM4658 |
