Power Management Development Boards and Kits

DC1988A

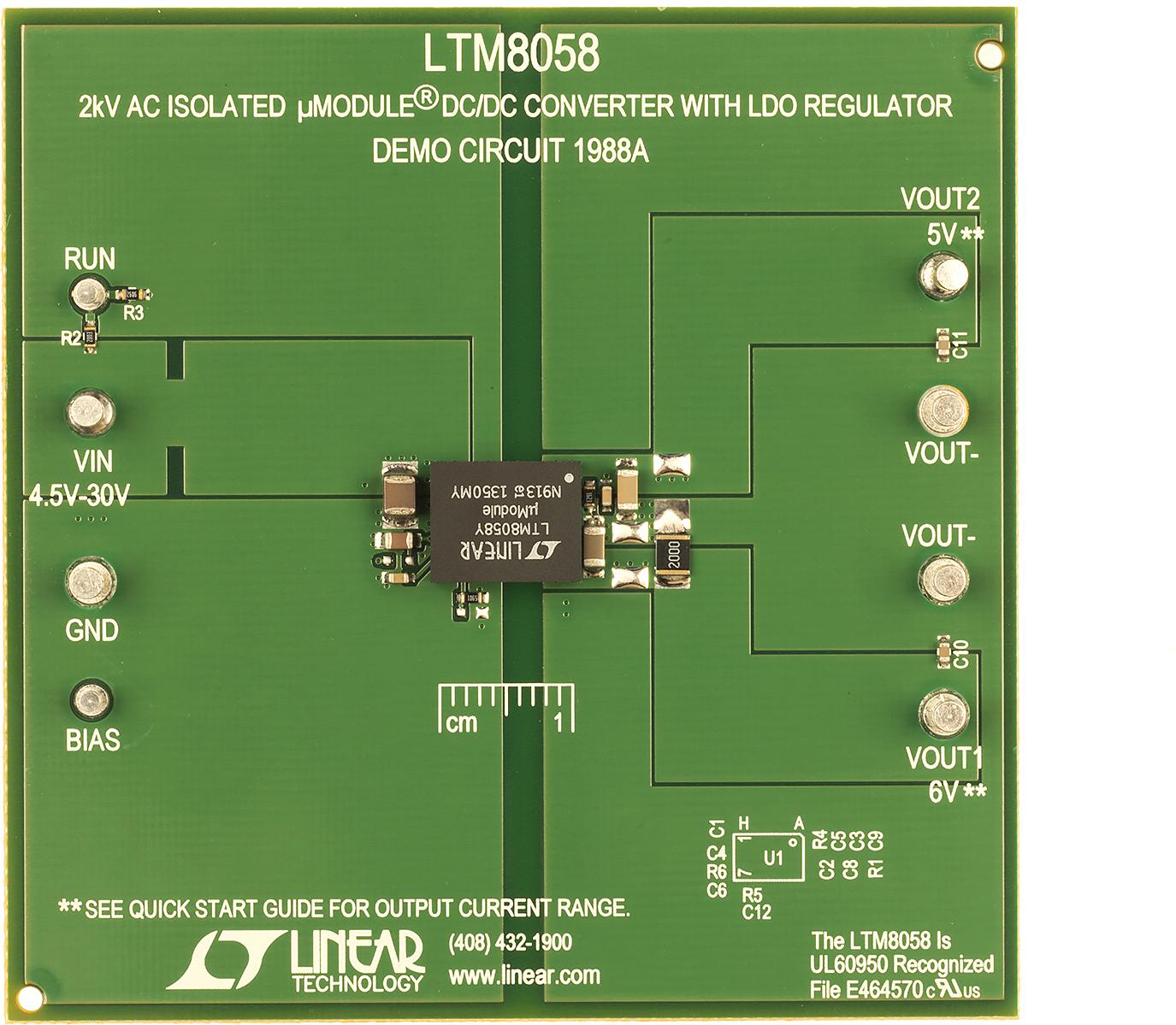

LTM8058 Demo Board, 2kV AC Isolated Flyback uModule Converter, 4.5V ≤ VIN ≤ 30V, VOUT1 = 6V @ Up to 320mA, VOUT2 = VOUT1 LDO Post Regulator

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8473.30.11.80

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  DC to DC Converter and Switching Regulator Chip

• Number of Outputs

  2

• Output Voltage Range (VDC)

  4.85 to 5.15/5.7 to 6.3

• Input Voltage Range

  4.5VDC to 30VDC

• Supported Device

  LTM8058
