DC1793A

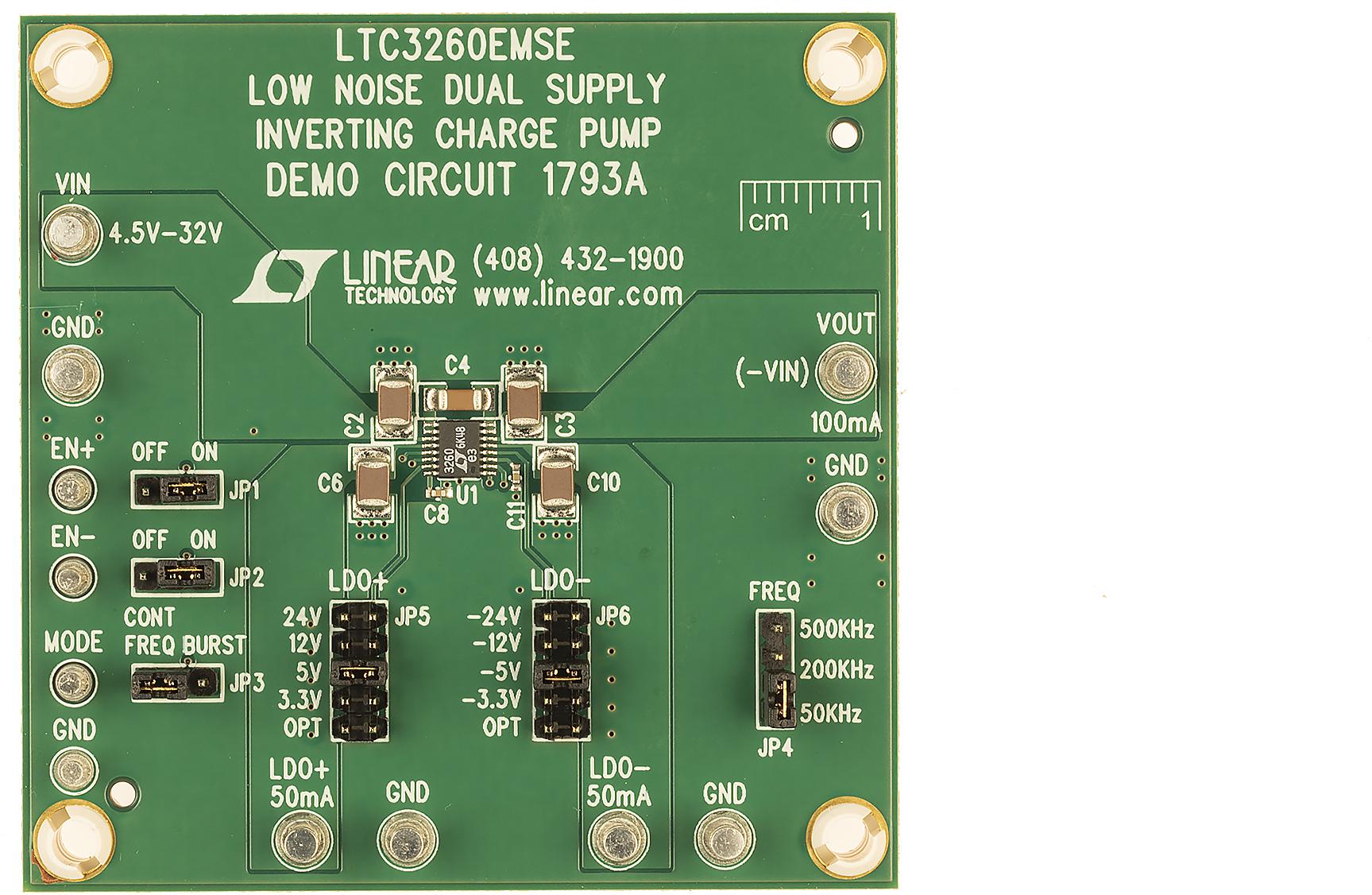

LTC3260EMSE Demo Board, Low Noise Dual Supply Inverting Charge Pump Plus ±LDO, 4.5V ≤ VIN ≤ 32V, VOUT = ±3.3V/±5V/±12V/±24V/±Adj @ ±50mA

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8473.30.11.80

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  Charge Pump

• Number of Outputs

  1

• Input Voltage Range

  4.5VDC to 32VDC

• Typical Switching Frequency (kHz)

  50|200|500

• Supported Device

  LTC3260EMSE
