Power Management Development Boards and Kits

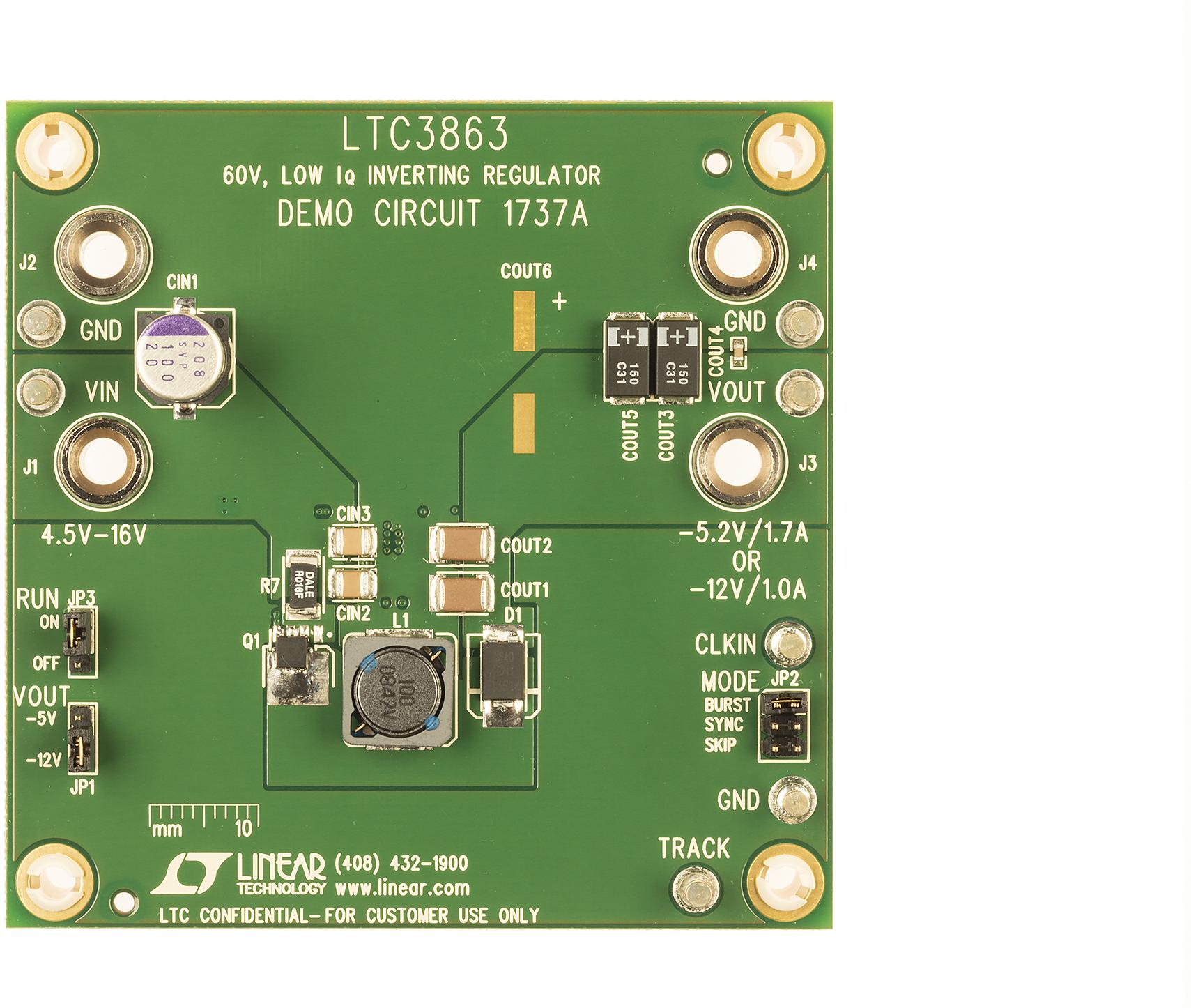

DC1737A

LTC3863EMSE Demo Board, 4.5V-16V; VOUT = -5.2V @ 1.7A or -12V @ 1A

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  DC1737A

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  DC to DC Controller

• Number of Outputs

  1

• Output Voltage Range (VDC)

  5.2|12

• Output Current (mA)

  1000|1700

• Input Voltage Range

  4.5VDC to 16VDC

• Typical Switching Frequency (kHz)

  400

• Efficiency (%)

  89.3

• Supported Device

  LTC3863

• Product Length (mm)

  22.86

• Product Depth (mm)

  20.32
