Audio Indicators and Alerts

CPE-522

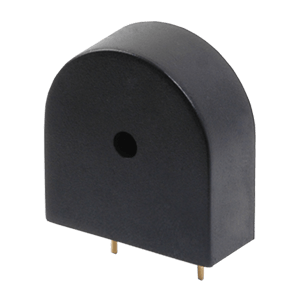

Audio Indicator Piezo 3VDC 20VDC 10mA 12VDC 75dB 2700Hz to 3700Hz Through Hole Radial Box

Same Sky (formerly CUI Devices)

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8531.80.90.41

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Indicator

• Technology

  Piezo

• Maximum Resonant Frequency (Hz)

  3700

• Frequency Range (Hz)

  2700 to 3700

• Minimum Sound Pressure (dBA)

  75dB

• Tone Mode

  Continuous

• Minimum Operating Supply Voltage

  3VDC

• Typical Operating Supply Voltage

  12VDC

• Maximum Operating Supply Voltage

  20VDC

• Maximum Supply Current (mA)

  10

• Mounting

  Through Hole

• Termination Method

  Radial

• Number of Terminals

  2

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  115

• Packaging

  Box

• Product Length (mm)

  24

• Product Depth (mm)

  10

• Product Height (mm)

  25
