Connector Headers and PCB Receptacles

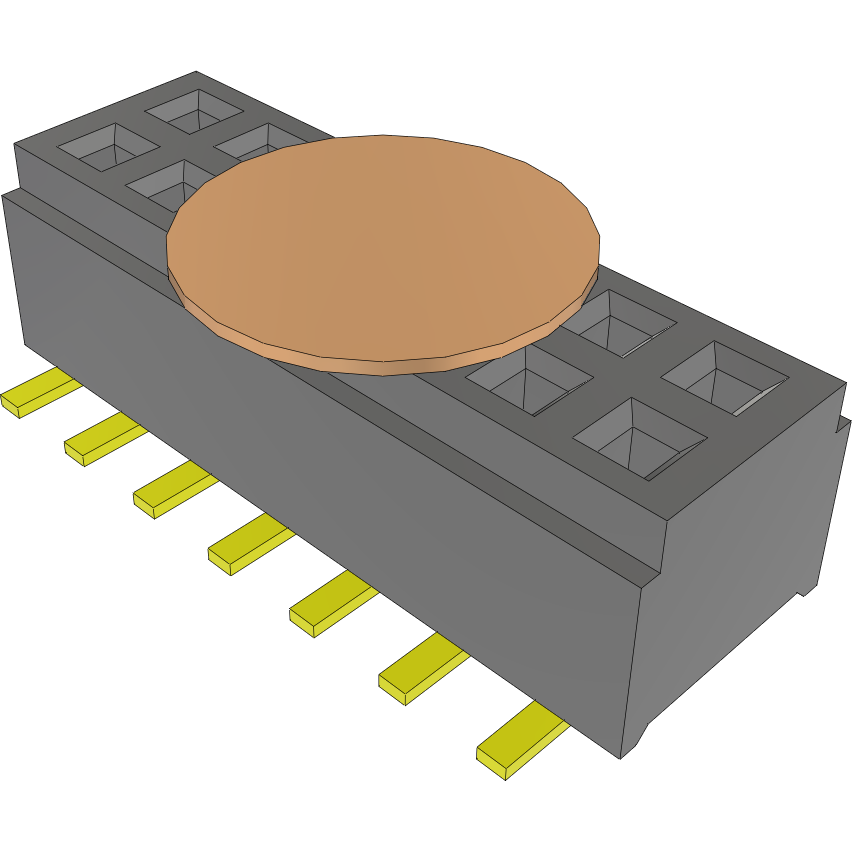

CLM-107-02-G-D-K-FR

Conn Micro Socket Strip RCP 14 POS 1mm Solder ST SMD T/R

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• Automotive

  No

• PPAP

  No

• Type

  Micro Socket Strip

• Gender

  RCP

• Number of Contacts

  14

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  1

• Body Orientation

  Straight

• Maximum Current Rating (A)

  3.1/Contact

• Maximum Voltage Rating

  382VDC, 270VAC

• Maximum Contact Resistance (mOhm)

  15

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Product Length (mm)

  7.31

• Product Depth (mm)

  3.81

• Product Height (mm)

  2.26

• Mounting

  Surface Mount
