LED Drivers

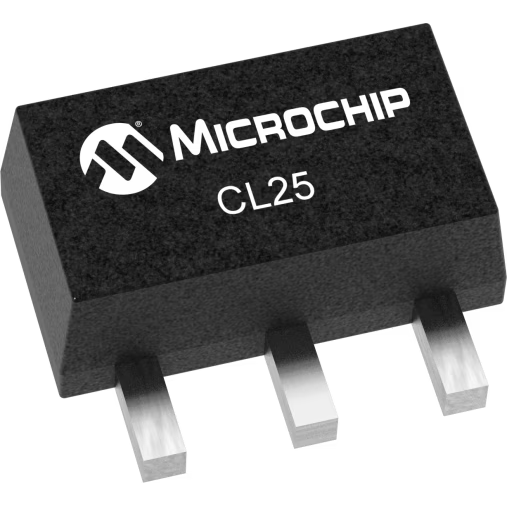

CL25N8-G

LED Driver 9V/12V/15V/18V/24V 4-Pin(3+Tab) SOT-89 T/R

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Minimum Operating Supply Voltage (V)

  5

• Maximum Operating Supply Voltage (V)

  90

• Typical Operating Supply Voltage (V)

  9|12|15|18|24

• Maximum Power Dissipation (mW)

  1300

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  1.6(Max) mm

• Package Width

  2.6(Max) mm

• Package Length

  4.6(Max) mm

• PCB changed

  3

• Tab

  Tab

• Standard Package Name

  SOT

• Supplier Package

  SOT-89

• Pin Count

  4

• Lead Shape

  Flat
