AC to DC Power Supplies

CE-300-5001

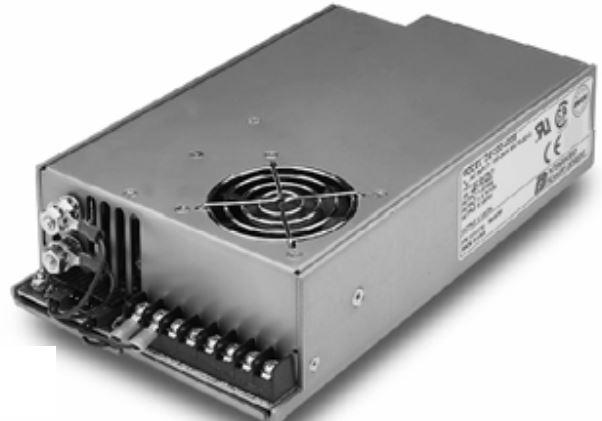

AC/DC Power Supply Quint-OUT 5V/24V/12V/-5V/-12V 40A/4A/6A/1A/2A 300W 23-Pin

Integrated Power Designs

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  Regulated

• Style

  Enclosed

• Input/Output Type

  AC/DC

• Number of Outputs

  5

• Output Type

  Fixed

• Output Voltage (V)

  5|24|12|-5|-12

• Output Current (A)

  40|4|6|1|2

• Output Power (W)

  300

• Minimum AC Input Voltage (V)

  85

• Maximum AC Input Voltage (V)

  264

• Minimum Isolation Voltage

  4242VDC

• Line Regulation

  0.5%

• Load Regulation

  1%

• Maximum Input Current (A)

  5.8(rms)

• Input Frequency (Hz)

  47 to 63

• Efficiency (%)

  80

• Configurable

  No

• Input Connector Type

  Pin Terminal Block

• Output Connector Type

  Pin Terminal Block

• Power Indicator

  No

• Ripple and Noise

  1%

• Medical

  No

• Minimum Operating Temperature (°C)

  0

• Maximum Operating Temperature (°C)

  50

• Product Weight (g)

  1497

• Mounting

  Screw

• Package Height

  49.5

• Package Width

  124.5

• Package Length

  215.9

• PCB changed

  23

• Pin Count

  23
