Connector USB

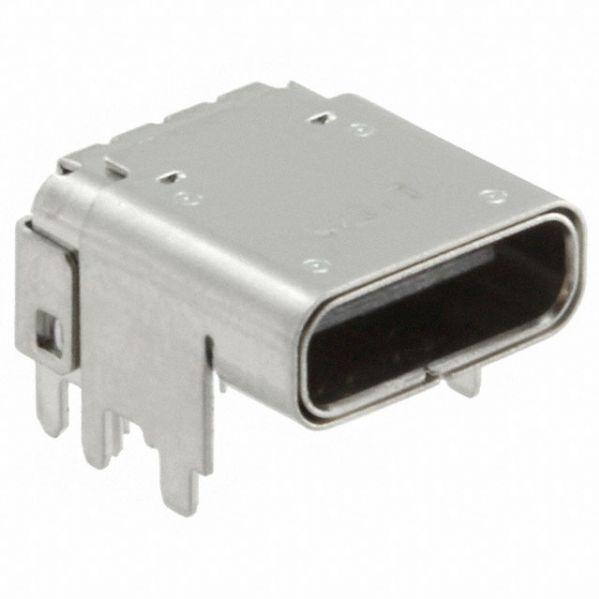

C-ARA1-AK511

Conn USB 3.0 Type C RCP 24 POS 0.8mm/1.6mm Solder RA SMD/Thru-Hole 24 Terminal 1 Port T/R

CnC Tech, LLC

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  USB 3.0 Type C

• Gender

  RCP

• Number of Terminals

  24

• Number of Contacts

  24

• Number of Ports

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.8/1.6

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  5

• Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  50

• Mating Cycle (Cycles)

  10000

• Shell Material

  Metal

• Shell Plating

  Nickel

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tape and Reel

• Product Length (mm)

  9.4

• Product Depth (mm)

  10.47

• Product Height (mm)

  5.81

• Mounting

  Surface Mount/Through Hole
