Connector Headers and PCB Receptacles

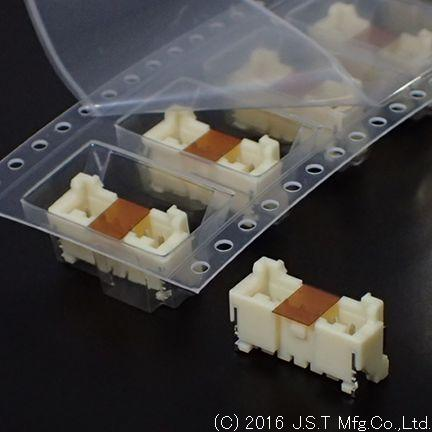

BM06B-PASS-TFT (LF)(SN)

Conn Shrouded Header (4 Sides) HDR 6 POS 2mm Solder ST Top Entry SMD T/R

JST Mfg. Co., Ltd.

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  6

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2

• Body Orientation

  Straight

• Polarization Type

  Center Key

• Maximum Current Rating (A)

  3

• Maximum Voltage Rating

  250VAC|250VDC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  20

• Minimum Operating Temperature (°C)

  -25

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tape and Reel

• Product Length (mm)

  16

• Product Height (mm)

  8.9

• Mounting

  Surface Mount
