RF Diodes and Mixers

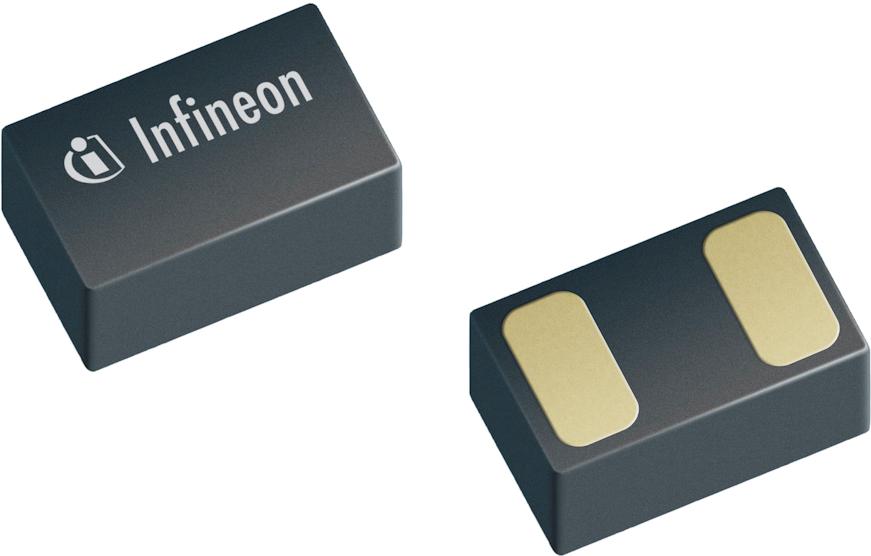

BAT1502ELE6327XTMA1

Diode RF Schottky 4V 100mW 2-Pin TSLP T/R

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8541.10.00.60

• Automotive

  No

• PPAP

  No

• Type

  Schottky Diode

• Configuration

  Single

• Frequency Band

  SHF

• Maximum Forward Voltage (V)

  0.41@0.01A

• Maximum Reverse Voltage (V)

  4

• Maximum Diode Capacitance (pF)

  0.24

• Maximum Power Dissipation (mW)

  100

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  150

• Packaging

  Tape and Reel

• Maximum Series Resistance (Ohm)

  10

• Maximum Forward Current (mA)

  110

• Mounting

  Surface Mount

• Package Height

  0.27(Max)

• Package Width

  0.6

• Package Length

  1

• PCB changed

  2

• Supplier Package

  TSLP

• Pin Count

  2
