Microcontrollers - MCUs

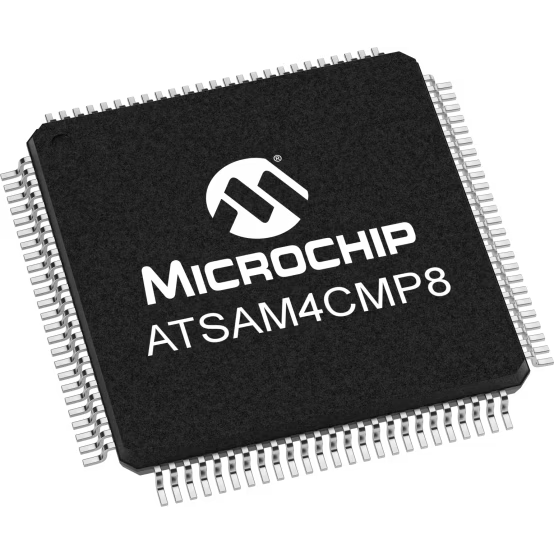

ATSAM4CMP8CC-AUT

MCU 32-bit ARM Cortex M4/ARM Cortex M4F RISC 512KB Flash 1.2V/1.8V/2.5V/3.3V 100-Pin TQFP Tray

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  5A992.c

• Part Status

  Active

• HTS

  8542.31.00.25

• Automotive

  No

• PPAP

  No

• Family Name

  SAM4CM

• Instruction Set Architecture

  RISC

• Device Core

  ARM Cortex M4F|ARM Cortex M4

• Core Architecture

  ARM

• Maximum CPU Frequency (MHz)

  120

• Maximum Clock Rate (MHz)

  12

• Data Bus Width (bit)

  32

• Program Memory Type

  Flash

• Program Memory Size

  512KB

• RAM Size

  152KB

• Maximum Expanded Memory Size

  4GB

• Programmability

  Yes

• Interface Type

  I2C/SPI/UART/USART

• Number of I/Os

  52

• No. of Timers

  2

• Timers Resolution (bit)

  16

• Timers Channels

  6

• PWM

  3

• Number of ADCs

  1

• ADC Channels

  6

• ADC Resolution (bit)

  10

• LCD Segments

  198

• USART

  3

• UART

  2

• USB

  0

• SPI

  4

• I2C

  2

• I2S

  0

• CAN

  0

• Ethernet

  0

• Number of Watchdog Timers

  2

• Parallel Master Port

  No

• Real Time Clock

  Yes

• Special Features

  LCD Controller

• Minimum Operating Supply Voltage (V)

  1.62|1.08

• Typical Operating Supply Voltage (V)

  3.3|2.5|1.8|1.2

• Maximum Operating Supply Voltage (V)

  3.6|1.32

• Maximum Power Dissipation (mW)

  350

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Mounting

  Surface Mount

• Package Height

  1

• Package Width

  14

• Package Length

  14

• PCB changed

  100

• Standard Package Name

  QFP

• Supplier Package

  TQFP

• Pin Count

  100
