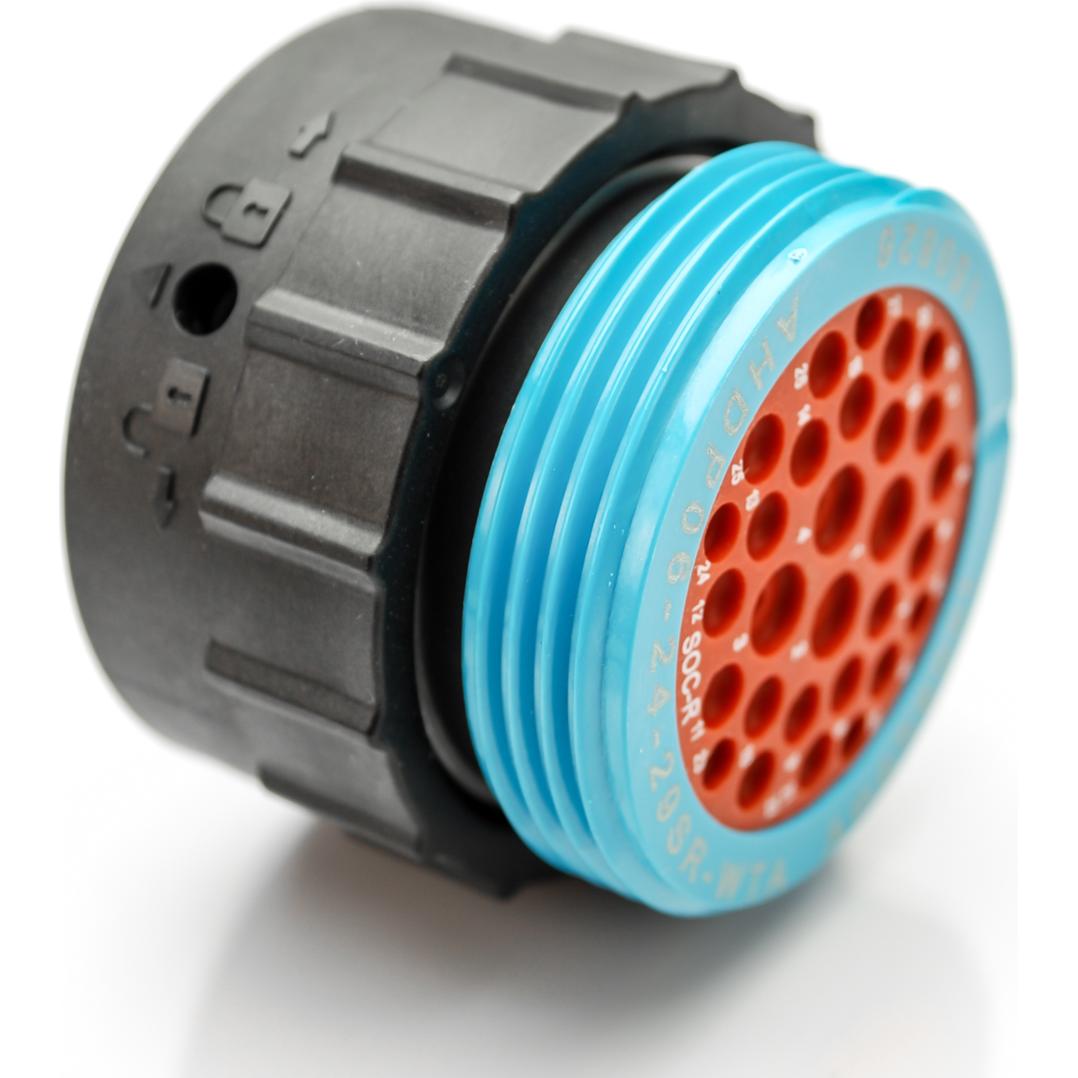

Connector Circular

AHDP06-24-29SR-WTA

Conn Circular SKT 29 POS ST Cable Mount 29 Terminal 1 Port

Amphenol

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.20

• Automotive

  Yes

• PPAP

  Unknown

• Type

  Circular

• Gender

  PL

• Mounting

  Cable Mount

• Body Orientation

  Straight

• Polarization

  N

• Number of Ports

  1

• Number of Contacts

  29

• Number of Terminals

  29

• Contact Gender

  SKT

• Shell Size / Insert Arrangement

  24-29

• Wire Size (AWG)

  (10-14)/(14-20)/(16-22)

• Less Contact

  Yes

• Shell Material

  Thermoplastic

• Housing Color

  Black

• Maximum Current Rating (A)

  25/13/7.5

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• IP Rating

  IP67/IP69K

• Insulation Resistance (MOhm)

  1000

• Mating Style

  Threaded

• Mating Cycle (Cycles)

  100

• Product Diameter (mm)

  50.4

• Product Length (mm)

  38.3
