Connector Circular

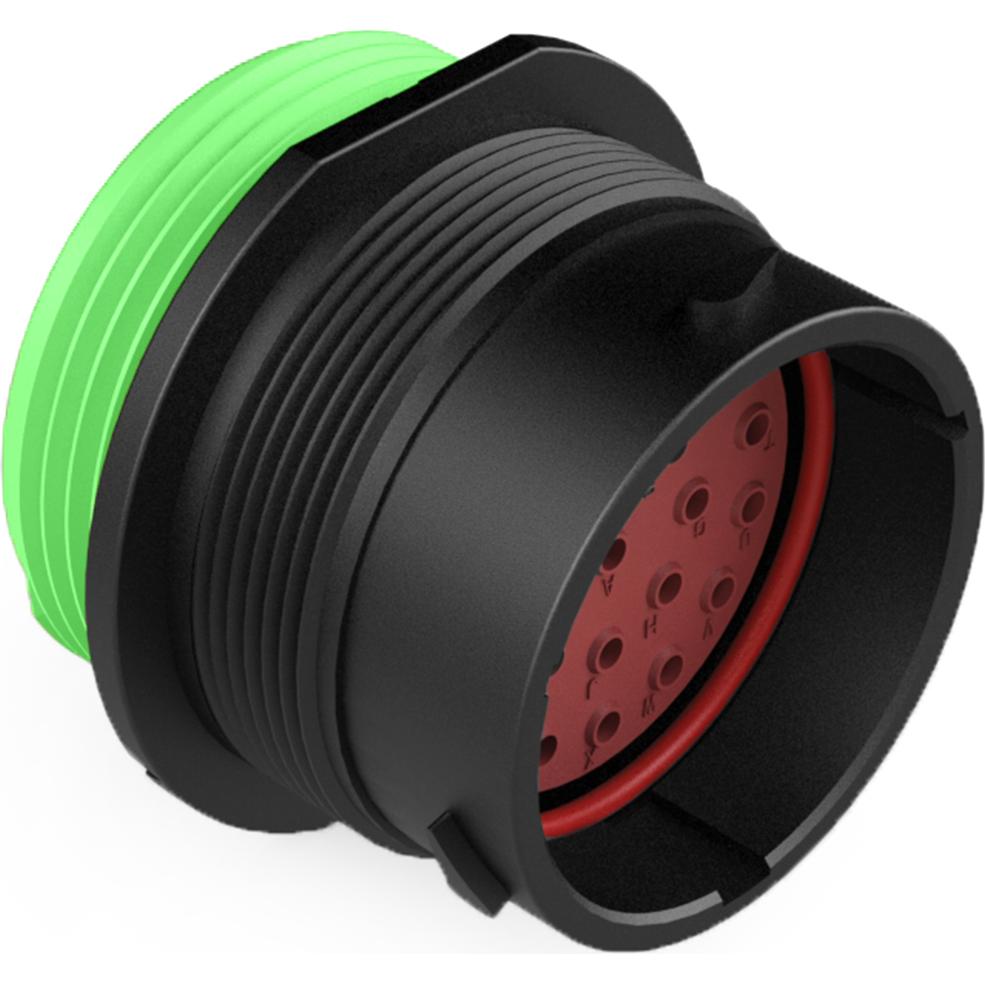

AHDP04-24-23PN-WTA

Conn Circular PIN 23 POS Crimp ST Panel Mount 23 Terminal 1 Port DuraMate™

Amphenol

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.20

• Automotive

  Yes

• PPAP

  Unknown

• Type

  Circular

• Tradename

  DuraMate™

• Gender

  RCP

• Mounting

  Panel Mount

• Body Orientation

  Straight

• Polarization

  N

• Number of Ports

  1

• Number of Contacts

  23

• Number of Terminals

  23

• Contact Gender

  PIN

• Termination Method

  Crimp

• Shell Size / Insert Arrangement

  24-23

• Wire Size (AWG)

  14-20

• Less Contact

  Yes

• Housing Color

  Black

• Maximum Current Rating (A)

  13

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• IP Rating

  IP67/IP69K

• Insulation Resistance (MOhm)

  1000

• Mating Style

  Threaded

• Mating Cycle (Cycles)

  100

• Product Length (mm)

  42.1

• Product Depth (mm)

  50.8

• Product Height (mm)

  47.6
