Connector Audio and Video

AC3M

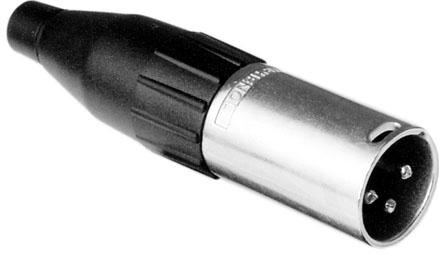

Conn XLR Connector M 3 POS Solder ST Cable Mount 3 Terminal 1 Port Bag

Amphenol

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.80.00

• Automotive

  No

• PPAP

  No

• Type

  XLR Connector

• Gender

  M

• Number of Contacts

  3

• Number of Terminals

  3

• Number of Ports

  1

• Termination Method

  Solder

• Body Orientation

  Straight

• Maximum Current Rating (A)

  15

• Maximum Voltage Rating

  133VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  3

• Minimum Operating Temperature (°C)

  -25

• Maximum Operating Temperature (°C)

  75

• Mating Cycle (Cycles)

  1000

• Packaging

  Bag

• IP Rating

  IP40

• Product Length (mm)

  82

• Mounting

  Cable Mount

• Housing Material

  Polybutylene Terephthalate|Polyphenylene Ether

• Contact Plating

  Silver

• Contact Material

  Phosphor Bronze
