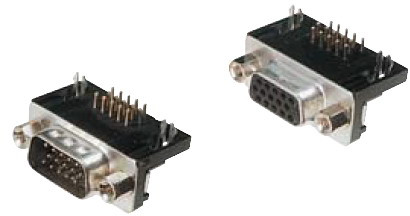

Assmann WSW components, IncA-HDS 26 A-KG/TConnector D-Subminiature
Conn D-Sub PIN 26 POS 1.14mm Solder RA Thru-Hole 26 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| D-Sub | |
| PL | |
| 26 | |
| 26 | |
| 1 | |
| 3 | |
| Solder | |
| 1.14 | |
| Right Angle | |
| PIN | |
| 3 | |
| 3000 | |
| -55 | |
| 105 | |
| A | |
| No | |
| 39.2 | |
| 12.5 | |
| Through Hole |
The A-HDS 26 A-KG/T DVI connector from Assmann WSW Components is ideal for communicating with any serial connections you have. It has a right angle body orientation. Its pitch is 2.29 mm. This 3-row connector has a single port. A-HDS 26 A-KG/T is housed in polybutylene terephthalate. This device has a maximum current rating of 3 A. Its 26 terminals use the solder termination method. This DVI connector has an operating temperature of -55 to 105 °C. This product is 12.5 mm tall.
