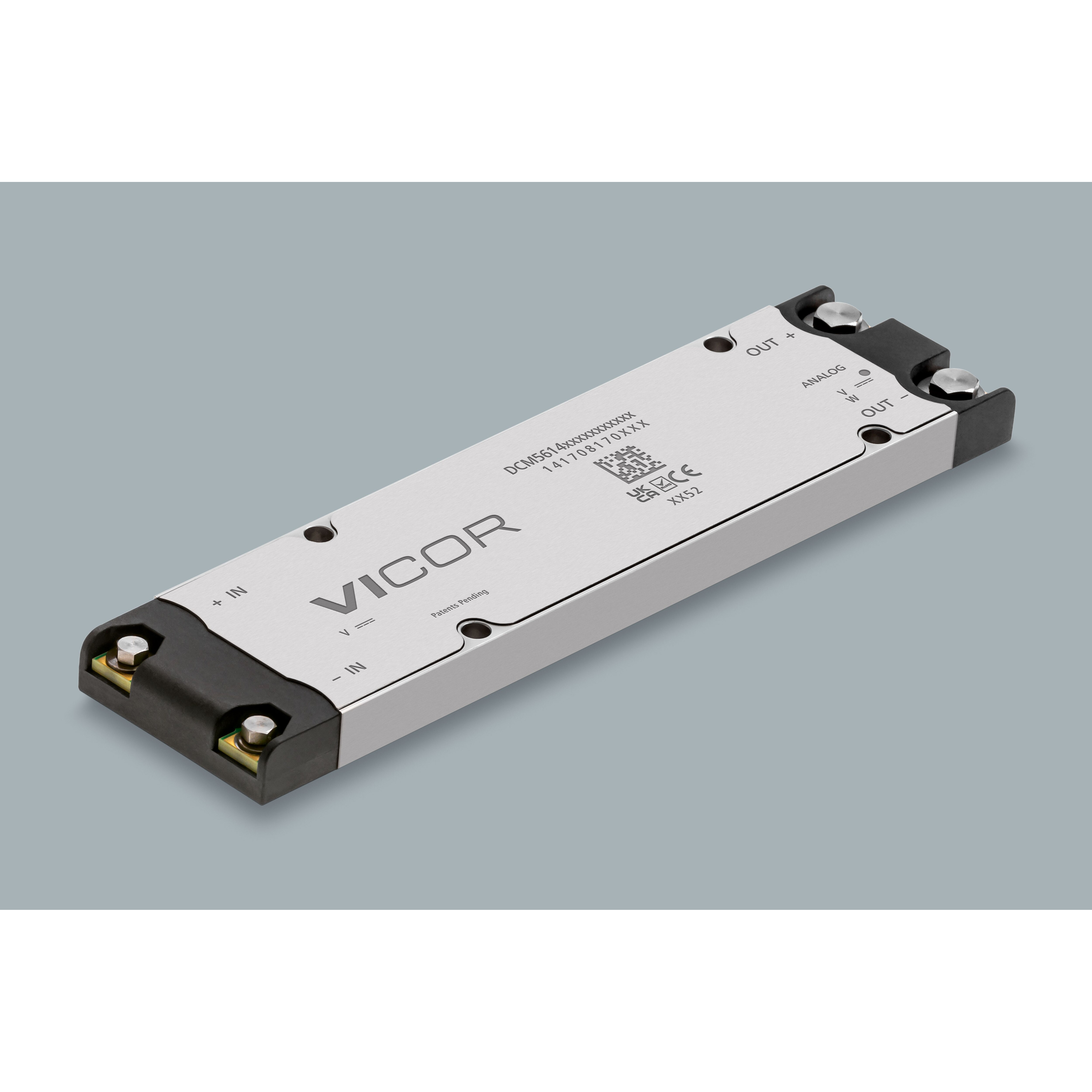

DC to DC Converter and Switching Regulator Module

DCM5614VD0H36K3T01

Module DC-DC 270VIN 1-OUT 28V 46.43A 1300W 9-Pin

Vicor

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Isolation

  Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  180

• Typical Input Voltage (V)

  270

• Maximum Input Voltage (V)

  400

• Output Voltage (V)

  28

• Output Current (A)

  46.43

• Output Power (W)

  1300

• Minimum Isolation Voltage

  2121VDC

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  990

• Switching Regulator

  Yes

• Efficiency (%)

  93.7(Typ)

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  100

• Output Type

  Fixed

• Mounting

  Chassis

• Package Height

  9.4

• Package Width

  35.54

• Package Length

  141.43

• PCB changed

  9

• Pin Count

  9
