Connector RF

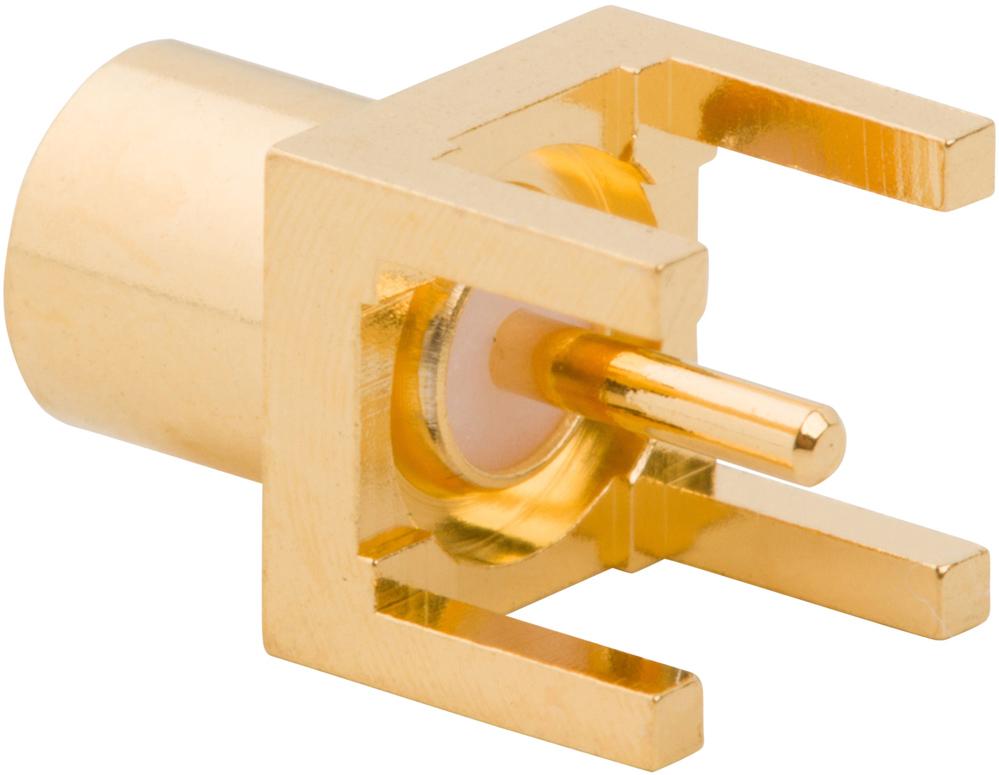

919-109J-51PX

Conn MCX 0Hz to 6GHz 50Ohm Solder ST Thru-Hole RCP Gold Over Nickel Bag

Amphenol RF

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  MCX

• Gender

  RCP

• Termination Method

  Solder

• Body Orientation

  Straight

• Contact Gender

  F

• Contact Plating

  Gold Over Nickel

• Operating Frequency (Hz)

  0 to 6G

• Maximum Insertion Loss (dB)

  0.1

• Impedance (Ohm)

  50

• Insulation Resistance (MOhm)

  10000

• Mating System

  Push On

• Mating Cycle (Cycles)

  500

• Polarity

  Standard

• Minimum Operating Temperature (°C)

  -65

• Maximum Operating Temperature (°C)

  165

• Packaging

  Bag

• Product Weight (g)

  0.7

• Product Length (mm)

  6

• Product Depth (mm)

  6

• Product Height (mm)

  6.06

• Mounting

  Through Hole
