System on Modules - SOM

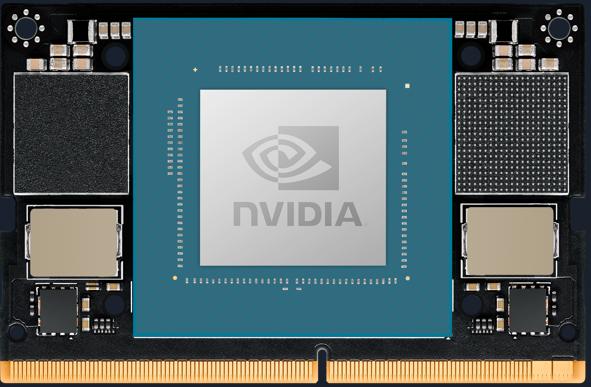

900-13767-0040-000 | NVIDIA® Jetson Orin™ Nano 4GB

Jetson Orin Nano 4GB System-on-Module (SOM): 512-Core Ampere GPU, 6-Core ARM 64 Bit CPU, 4 GB LPDDR5

NVIDIA

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  5A992c.

• Part Status

  Active

• HTS

  8473.30.11.80

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  Unknown

• PPAP

  Unknown

• Processor Type

  ARM

• Processor Family

  Cortex-A78AE v8.2

• Processor Number

  ARM Cortex-A78AE v8.2

• Processor Cores

  6 Core

• Processor Speed (Hz)

  1.7G

• Form Factor

  Small

• JTAG Support

  No

• Data Cache Size (B)

  1.5M|4M

• Number of System Memory Slots

  1

• RAM Type

  LPDDR5

• System Memory Maximum Size (B)

  4G

• System Memory Speed

  3199MHz

• UART

  3

• USART

  0

• SPI

  2

• I2C

  4

• CAN

  1

• USB

  6

• VGA

  0

• SATA

  0

• PATA

  0

• GPIO

  15

• Audio Interfaces

  1@DMIC/1@DSPK

• Video In

  Yes

• RS485

  0

• RS232

  0

• RS422

  0

• PCI

  0

• AGP

  0

• Ethernet

  1

• Ethernet Speed

  10Mbps/100Mbps/1000Mbps

• Display Chipset Type

  NVIDIA Ampere

• Display Interface

  DP|eDP|HDMI

• Graphic Card Resolution (Pixels)

  3840x2160@DP|3840x2160@eDP|3840x2160@HDMI

• Operating Systems

  Linux

• Linux

  Linux

• Medical Application

  Yes

• Minimum Operating Supply Voltage (V)

  4.75

• Typical Operating Supply Voltage (V)

  5

• Maximum Operating Supply Voltage (V)

  5.25|20

• Minimum Operating Temperature (°C)

  -25

• Maximum Operating Temperature (°C)

  105
