Connector Telephone and Telecom

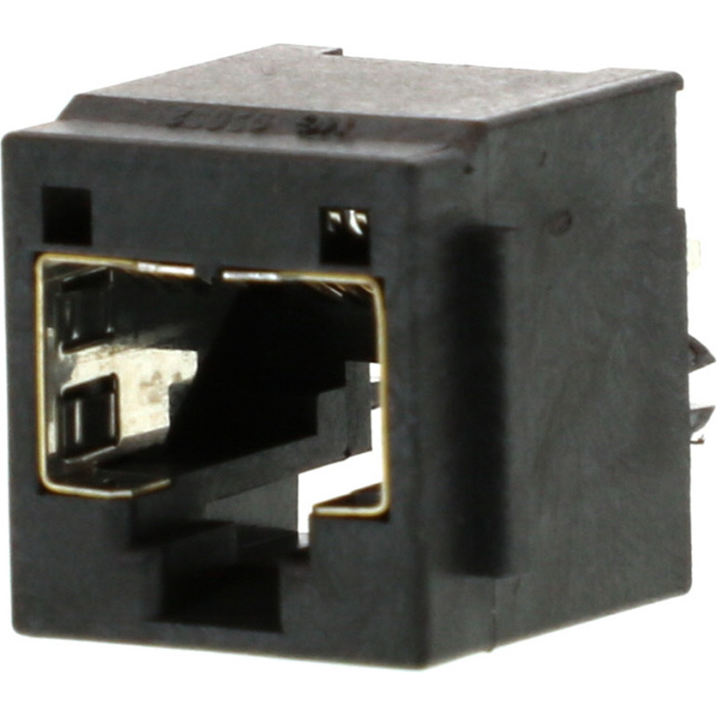

85507-5001

Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 8 Terminal 1 Port Cat 5e Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  RJ-45

• Gender

  RCP

• Number of Terminals

  8

• Number of Contacts

  8

• Number of Ports

  1

• Number of Loaded Positions

  8

• Category Number

  Cat 5e

• Termination Method

  Solder

• Terminal Pitch (mm)

  1.27

• Body Orientation

  Straight

• Maximum Current Rating (A)

  1.5/Contact

• Maximum Voltage Rating

  125VDC

• Mating Cycle (Cycles)

  2500

• Integrated Magnetics

  No

• Shell Material

  Brass

• Shell Plating

  Tin

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tray

• Product Style

  Single

• Product Weight (g)

  3.3

• Product Length (mm)

  18

• Product Depth (mm)

  16.64

• Product Height (mm)

  16.25

• Mounting

  Through Hole
