Connector Headers and PCB Receptacles

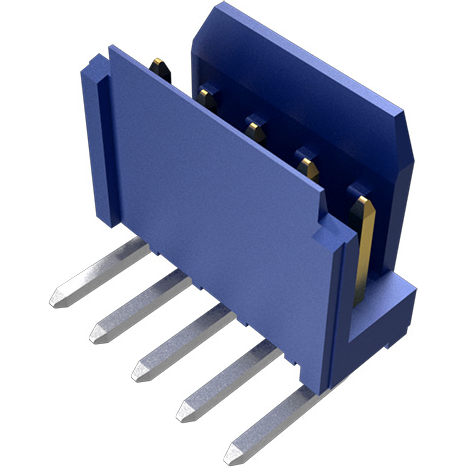

76382-305LF

Dubox®2.54mm, Board to Board Connector, Shrouded Header, Single Row, Right Angle

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header

• Gender

  HDR

• Number of Contacts

  5

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  3/Contact

• Maximum Voltage Rating

  1000VAC

• Insulation Resistance (MOhm)

  100000

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Bag

• Product Length (mm)

  12.52

• Product Height (mm)

  5.3

• Mounting

  Through Hole
