75867-105LF

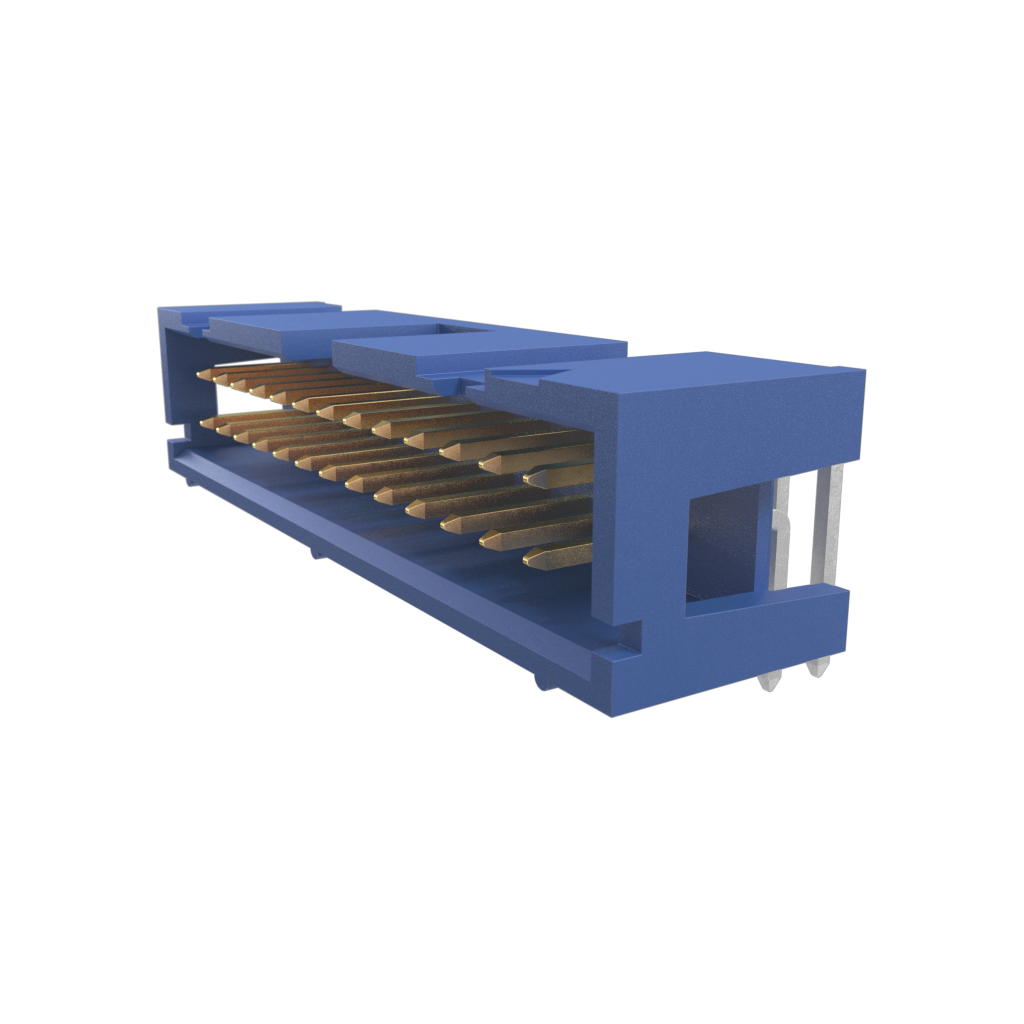

Quickie®, Wire to Board Connector, Double Row, 26 Positions, 2.54 mm (0.100in), Right Angle, Shrouded Header 0.76 um (30 uin) Gold or GXT™ Plating

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  26

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Polarization Type

  Center Slot

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  3/Contact

• Maximum Voltage Rating

  500VAC

• Insulation Resistance (MOhm)

  10000

• Minimum Operating Temperature (°C)

  -65

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Tube

• Product Length (mm)

  40.23

• Product Depth (mm)

  14.22

• Product Height (mm)

  9.57

• Tradename

  Quickie®

• Contact Plating Thickness

  0.76um

• Tail Length (mm)

  3.05

• Mounting

  Through Hole
