Connector Headers and PCB Receptacles

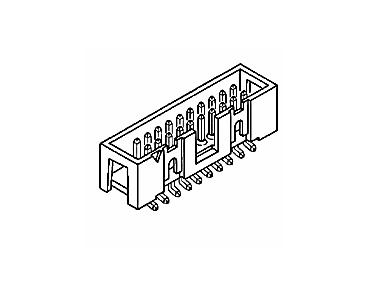

72454-020LF

Quickie Slimline Header, Wire to Board connector, Surface Mount, Double Row, 20 Positions, 2.54 mm (0.1 in.), Vertical Header 0.76 um (30 uin) Gold Mating Plating

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  20

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Polarization Type

  Center Slot

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  3/Contact

• Maximum Voltage Rating

  1000VAC

• Insulation Resistance (MOhm)

  10000

• Minimum Operating Temperature (°C)

  -65

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Tray

• Product Length (mm)

  32.77

• Product Depth (mm)

  8.76

• Product Height (mm)

  12.78

• Mounting

  Surface Mount
