Connector Headers and PCB Receptacles

705450044

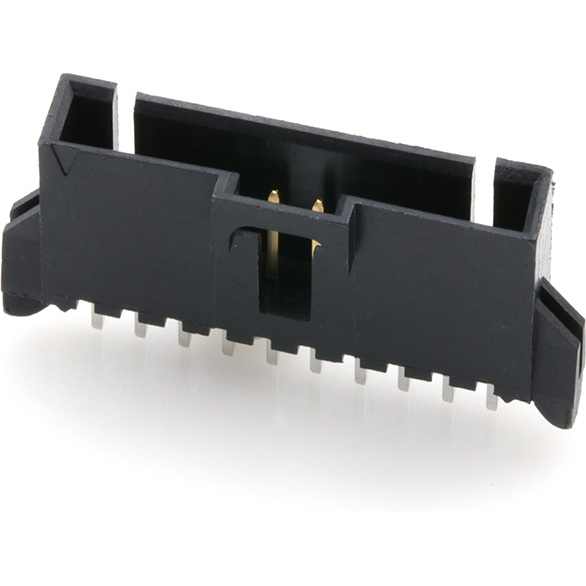

Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole SL Tube

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  10

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Polarization Type

  Center Slot/Dual Slot

• Maximum Current Rating (A)

  3/Contact

• Maximum Voltage Rating

  250V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  50

• Packaging

  Tube

• Product Weight (g)

  1.863

• Product Depth (mm)

  6.6

• Product Height (mm)

  11.81

• Tradename

  SL

• Tail Length (mm)

  3.3

• Mounting

  Through Hole
