Connector Headers and PCB Receptacles

70246-4001

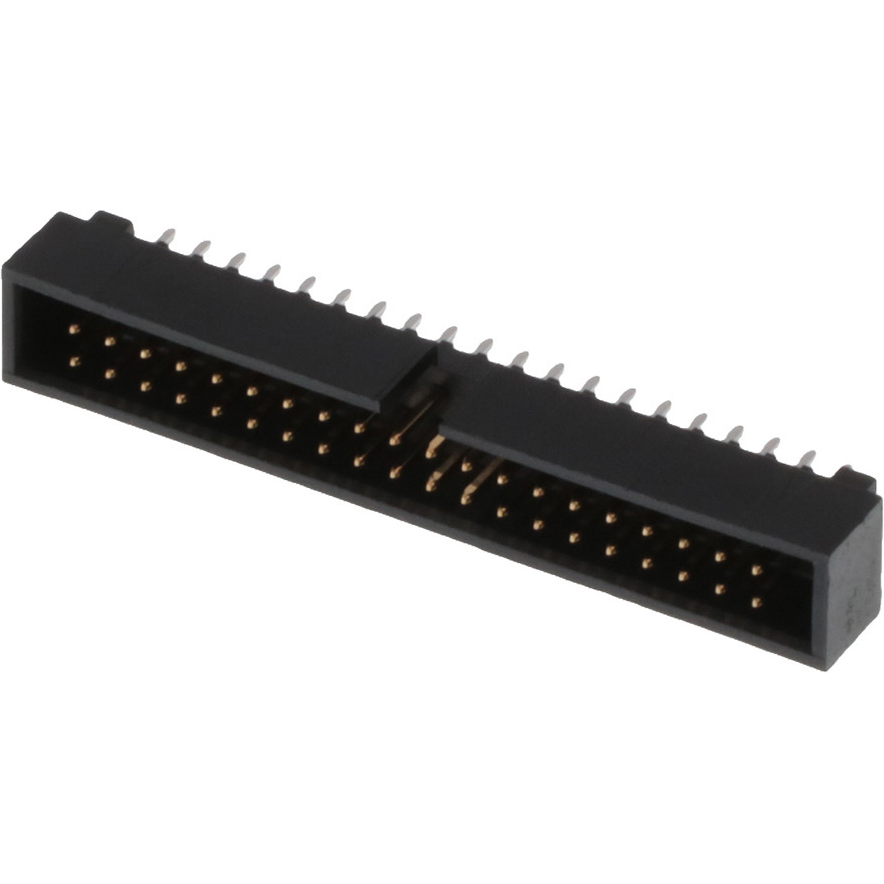

Conn Shrouded Header (4 Sides) HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole C-Grid Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  40

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Polarization Type

  Center Slot

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  2.5/Contact

• Maximum Voltage Rating

  250VDC

• Insulation Resistance (MOhm)

  12000

• Maximum Contact Resistance (mOhm)

  15

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  120

• Mating Cycle (Cycles)

  50

• Packaging

  Tray

• Product Weight (g)

  4.674

• Product Length (mm)

  58.42

• Product Depth (mm)

  8.89

• Product Height (mm)

  9.27

• Tradename

  C-Grid

• Tail Length (mm)

  3.43

• Mounting

  Through Hole
