Specialized Power ICs and Modules

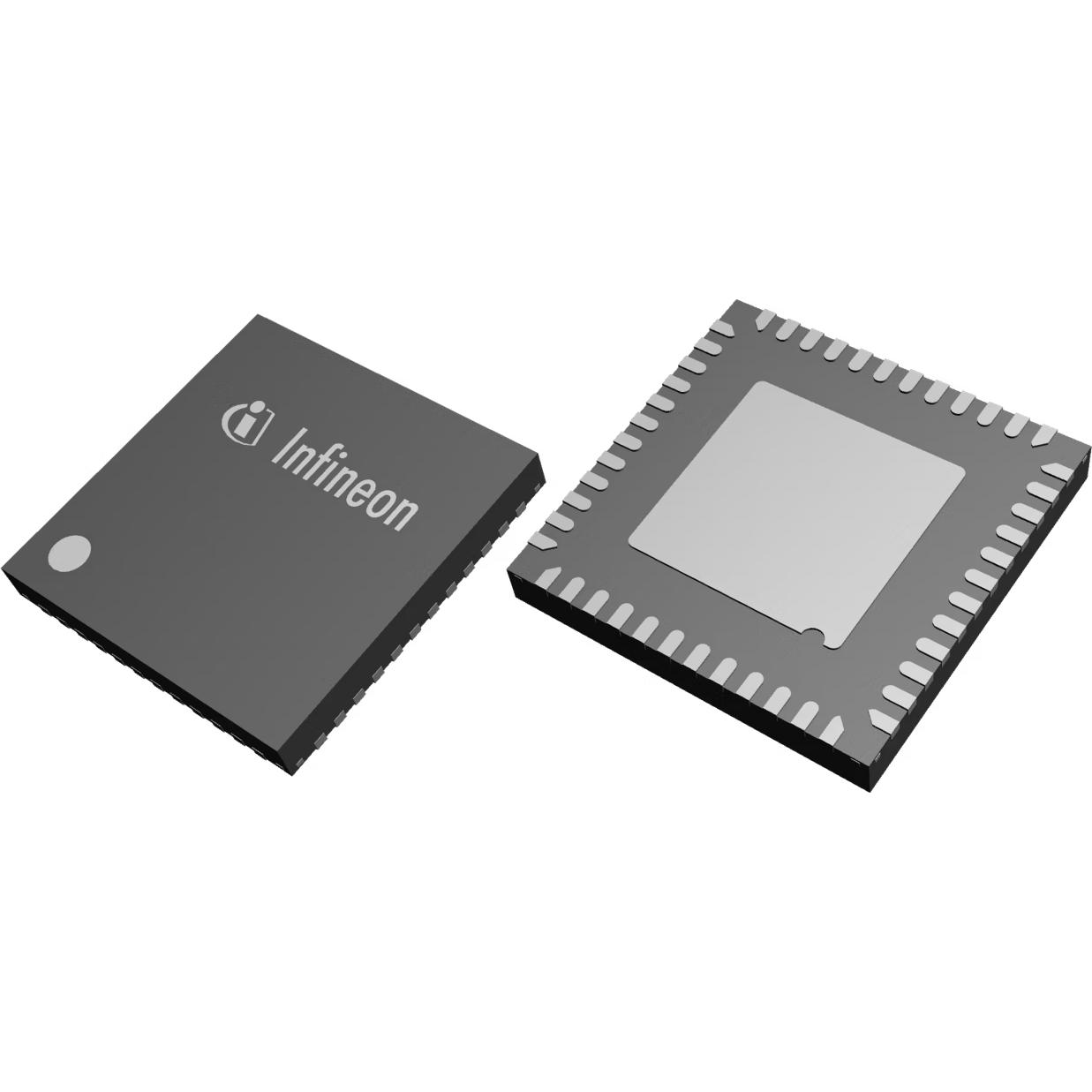

6EDL7141XUMA1

Smart Power Stage 48-Pin VQFN EP T/R

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Type

  Smart Power Stage

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.85(Max)

• Package Width

  7

• Package Length

  7

• PCB changed

  48

• Standard Package Name

  QFN

• Supplier Package

  VQFN EP

• Pin Count

  48

• Lead Shape

  No Lead
