Connector Headers and PCB Receptacles

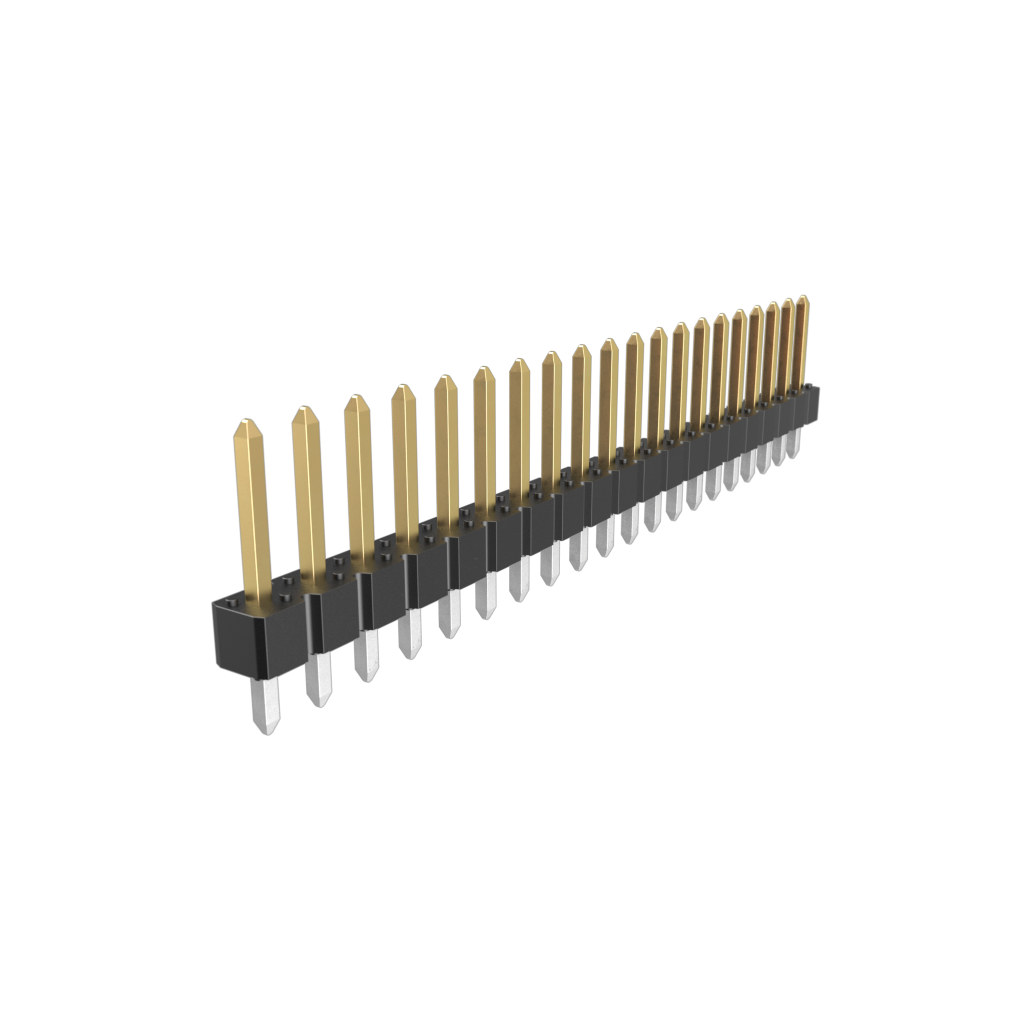

68000-420HLF

BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 20 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Unshrouded Header

• Gender

  HDR

• Number of Contacts

  20

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Maximum Current Rating (A)

  3/Contact

• Maximum Voltage Rating

  1500VAC

• Insulation Resistance (MOhm)

  5000

• Minimum Operating Temperature (°C)

  -65

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Bag

• Product Length (mm)

  50.8

• Product Depth (mm)

  2.41

• Product Height (mm)

  8.38

• Tradename

  BergStik®

• Tail Length (mm)

  2.41

• Mounting

  Through Hole
