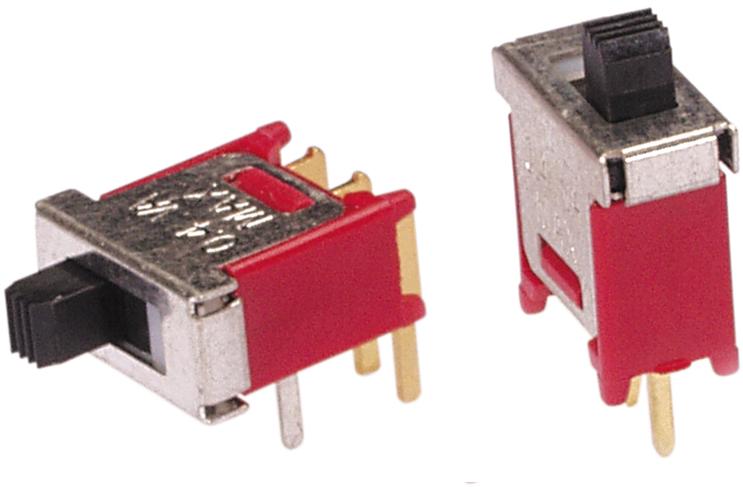

Switch Slide

48BFSP1M6RT

Switch Slide ON None ON SPDT Side Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole

Grayhill

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.50.90.50

• Automotive

  No

• PPAP

  No

• Actuator Style

  Side Slide

• Pole Throw Configuration

  SPDT

• Switch Configuration

  ON None ON

• Maximum Power Rating (VA)

  0.4@20VAC 20VDC

• Dielectric Strength

  1000Vrms

• Minimum Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Electrical Life (Cycles)

  30000

• Actuator Length (mm)

  3.1

• Number of Rows

  1

• Mounting

  Bracket Mount/Through Hole

• Termination Style

  PC Pins

• Number of Terminals

  3

• Terminal Length (mm)

  3.3

• Terminal Pitch (mm)

  2.54

• Seal Location

  Terminals

• Seal Description

  Epoxy

• Housing Material

  Stainless Steel

• Body Orientation

  Right Angle

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  85

• Size Type

  Sub-Miniature

• Body Length (mm)

  10.16

• Body Depth (mm)

  10.03

• Body Height (mm)

  5.59

• Product Length (mm)

  10.16

• Product Depth (mm)

  13.13

• Product Height (mm)

  5.59
