Connector Headers and PCB Receptacles

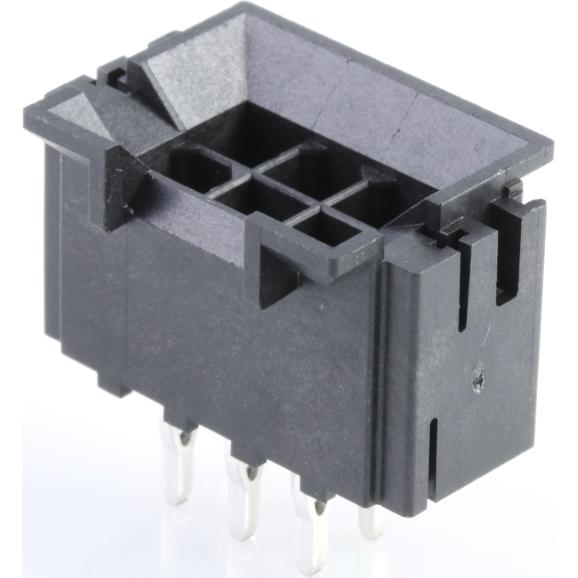

43879-0023

Conn Wire to Board HDR 6 POS 4.2mm Press Fit ST Top Entry Thru-Hole Mini-Fit BMI Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  6

• Number of Rows

  2

• Termination Method

  Press Fit

• Terminal Pitch (mm)

  4.2

• Body Orientation

  Straight

• Polarization Type

  Dual Key/Side Slot

• Row Spacing (mm)

  4.2

• Maximum Current Rating (A)

  8/Contact

• Maximum Voltage Rating

  600VAC|600VDC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  30

• Packaging

  Tray

• Product Weight (g)

  3.739

• Product Length (mm)

  23.01

• Product Depth (mm)

  15

• Product Height (mm)

  14.9

• Tradename

  Mini-Fit BMI

• Contact Plating Thickness

  (2.54/1.27)um

• Tail Length (mm)

  6.25

• Mounting

  Through Hole
