Connector Headers and PCB Receptacles

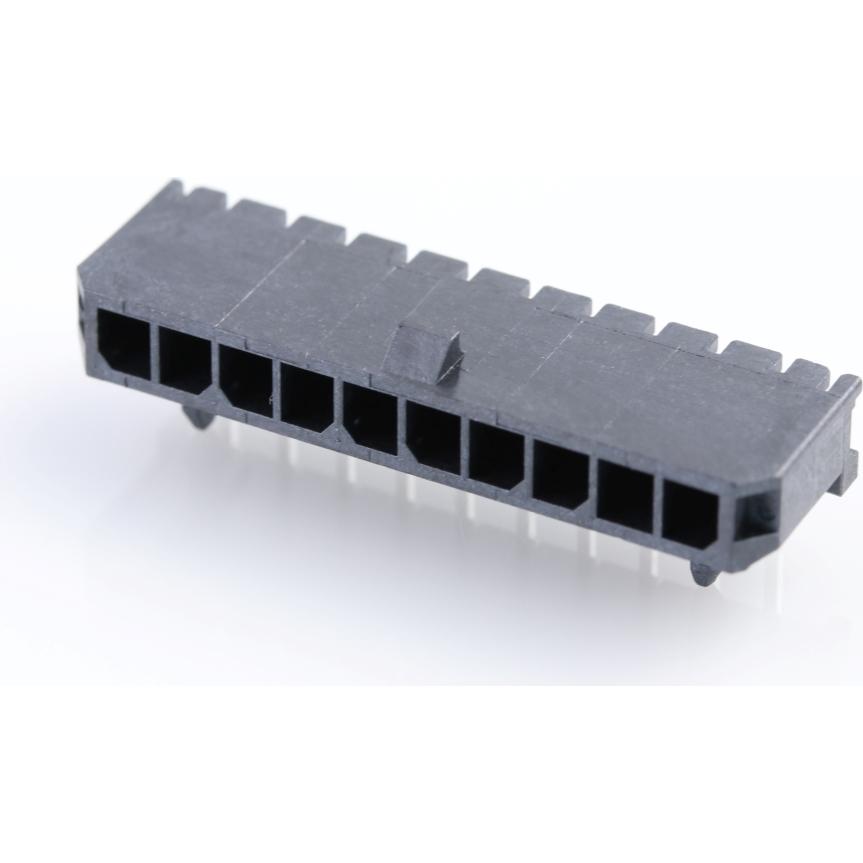

436501001

Conn Wire to Board HDR 10 POS 3mm Solder RA Thru-Hole Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  10

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  3

• Body Orientation

  Right Angle

• Polarization Type

  Center Key

• Maximum Current Rating (A)

  8.5/Contact

• Maximum Voltage Rating

  600V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  30

• Packaging

  Tray

• Product Length (mm)

  33.66

• Product Depth (mm)

  9.9

• Product Height (mm)

  5.57

• Tradename

  Micro-Fit 3.0

• Mounting

  Through Hole
