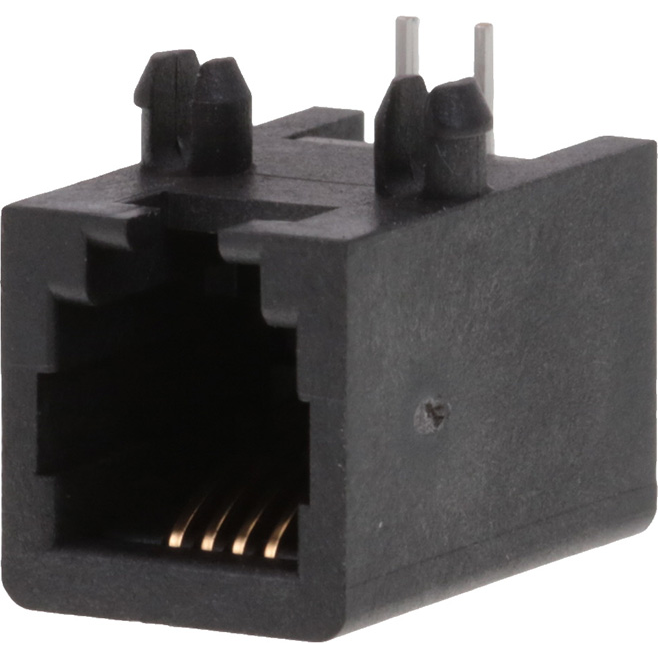

Connector Telephone and Telecom

432024101

Conn Modular Jack F 4 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Cat 3/Cat 4 Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Modular Jack

• Gender

  F

• Number of Terminals

  4

• Number of Contacts

  4

• Number of Ports

  1

• Number of Loaded Positions

  4

• Category Number

  Cat 3/Cat 4

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  1.5/Contact

• Maximum Voltage Rating

  150VAC

• Insulation Resistance (MOhm)

  500

• Maximum Contact Resistance (mOhm)

  10

• Mating Cycle (Cycles)

  500

• Integrated Magnetics

  No

• Shell Material

  Brass

• Shell Plating

  Nickel Over Copper

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tray

• Product Style

  Single

• Product Weight (g)

  2.1

• Product Length (mm)

  11.18

• Product Depth (mm)

  18.03

• Product Height (mm)

  11.58

• Mounting

  Through Hole
