Connector Headers and PCB Receptacles

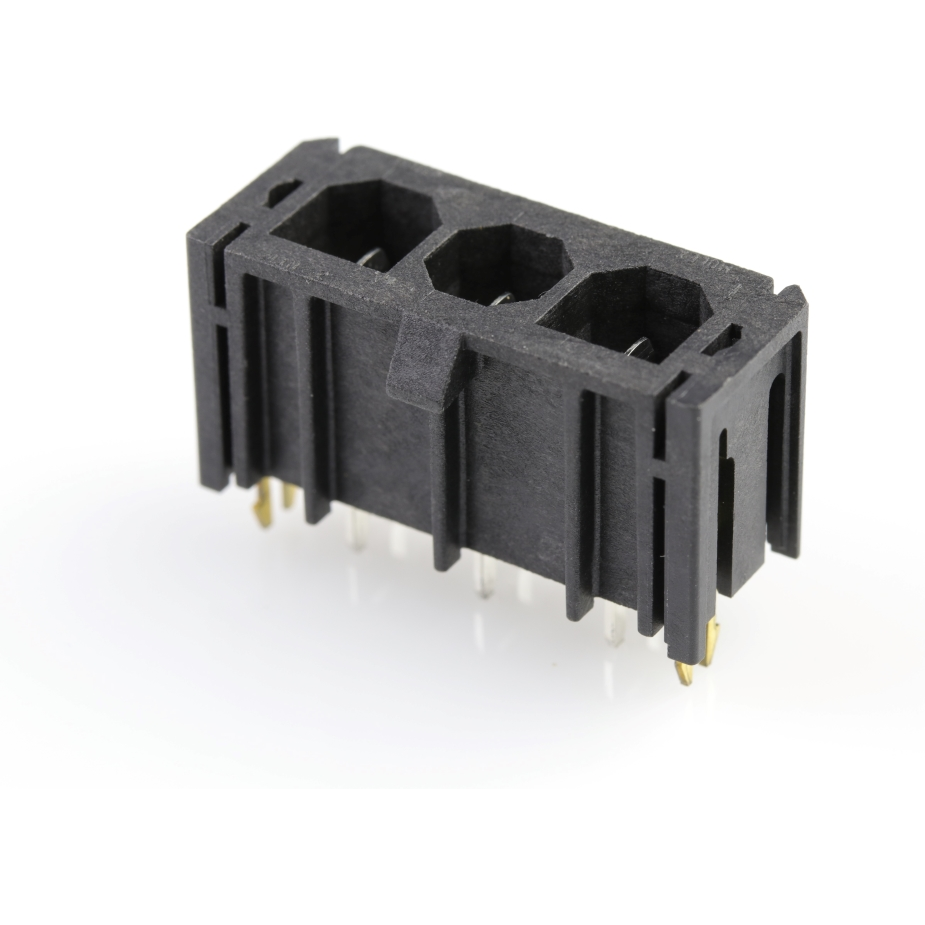

43160-2103

Conn Wire to Board HDR 3Power POS 7.49mm Solder ST Top Entry Thru-Hole Sabre Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  3Power

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  7.49

• Body Orientation

  Straight

• Polarization Type

  Center Key

• Maximum Current Rating (A)

  18/Contact

• Maximum Voltage Rating

  600V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  75

• Mating Cycle (Cycles)

  25

• Packaging

  Bag

• Product Weight (g)

  4.039

• Product Length (mm)

  28.58

• Product Depth (mm)

  13.38

• Product Height (mm)

  14.76

• Tradename

  Sabre

• Contact Plating Thickness

  0.889um

• Tail Length (mm)

  3.81

• Mounting

  Through Hole
