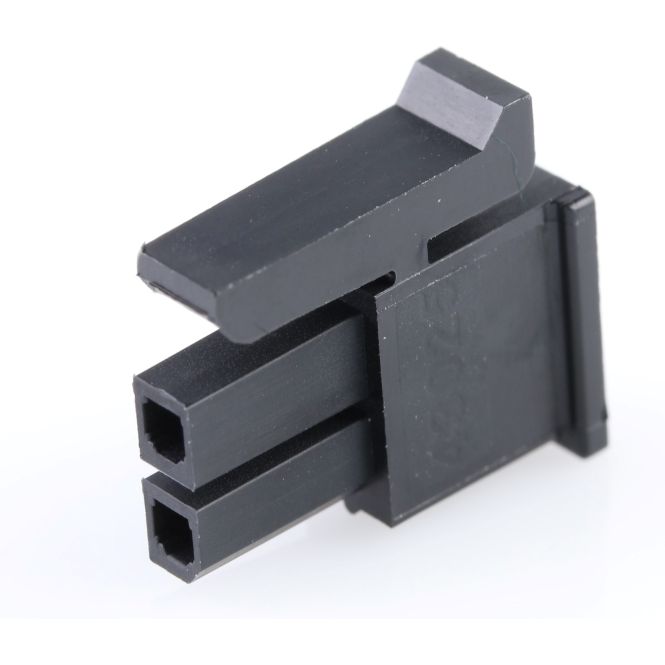

Connector Discrete Wire Housing

430250200 | Micro-Fit 3.0 Connector

Conn Housing RCP 2 POS Crimp ST Cable Mount Black Micro-Fit 3.0™ Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8538.90.81.80

• Automotive

  No

• PPAP

  No

• Type

  Housing

• Gender

  RCP

• Number of Contacts

  2

• Number of Rows

  2

• Termination Method

  Crimp

• Body Orientation

  Straight

• Maximum Current Rating (A)

  8/Contact

• Maximum Voltage Rating

  600VDC|600VAC

• Insulation Resistance (MOhm)

  1000

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  30

• Packaging

  Bag

• Product Weight (g)

  0.261

• Product Length (mm)

  3.86

• Product Depth (mm)

  10.84

• Product Height (mm)

  14

• Tradename

  Micro-Fit 3.0™

• Keyed

  Yes

• Row Spacing (mm)

  3

• Mounting

  Cable Mount
