Connector Headers and PCB Receptacles

395321005

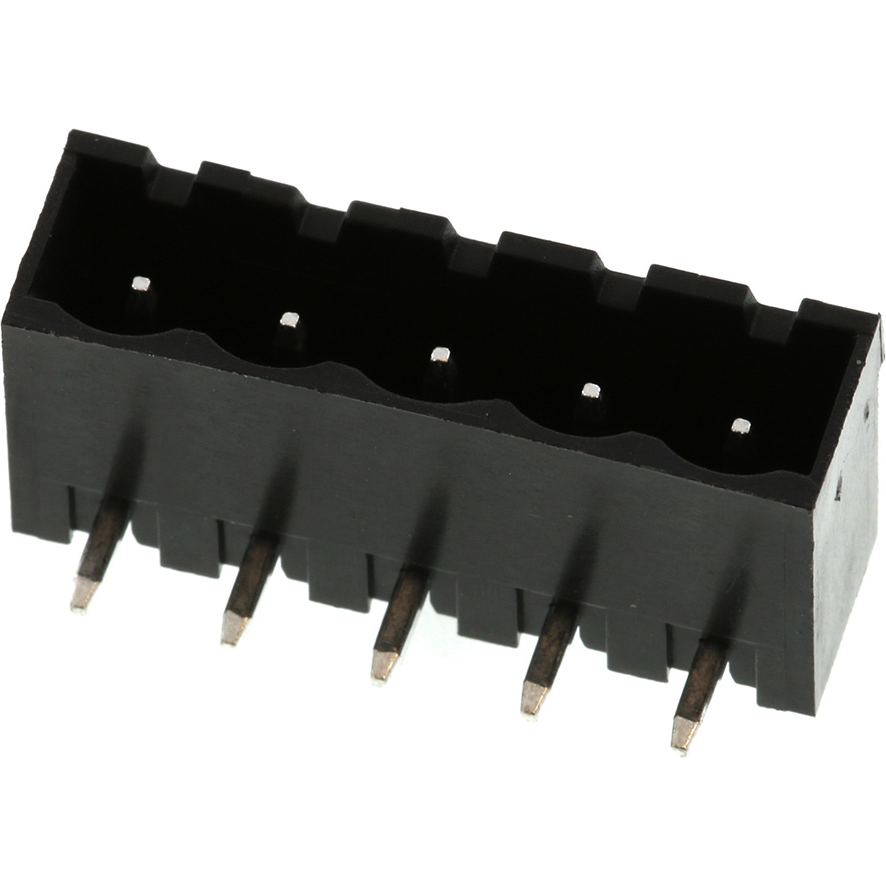

Conn Shrouded Header (4 Sides) HDR 5 POS 5.08mm Solder RA Thru-Hole Eurostyle

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  5

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  5.08

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  15/Contact

• Maximum Voltage Rating

  300V

• Insulation Resistance (MOhm)

  500

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Product Length (mm)

  27.4

• Product Depth (mm)

  12

• Product Height (mm)

  8.3

• Tradename

  Eurostyle

• Mounting

  Through Hole
