Connector Headers and PCB Receptacles

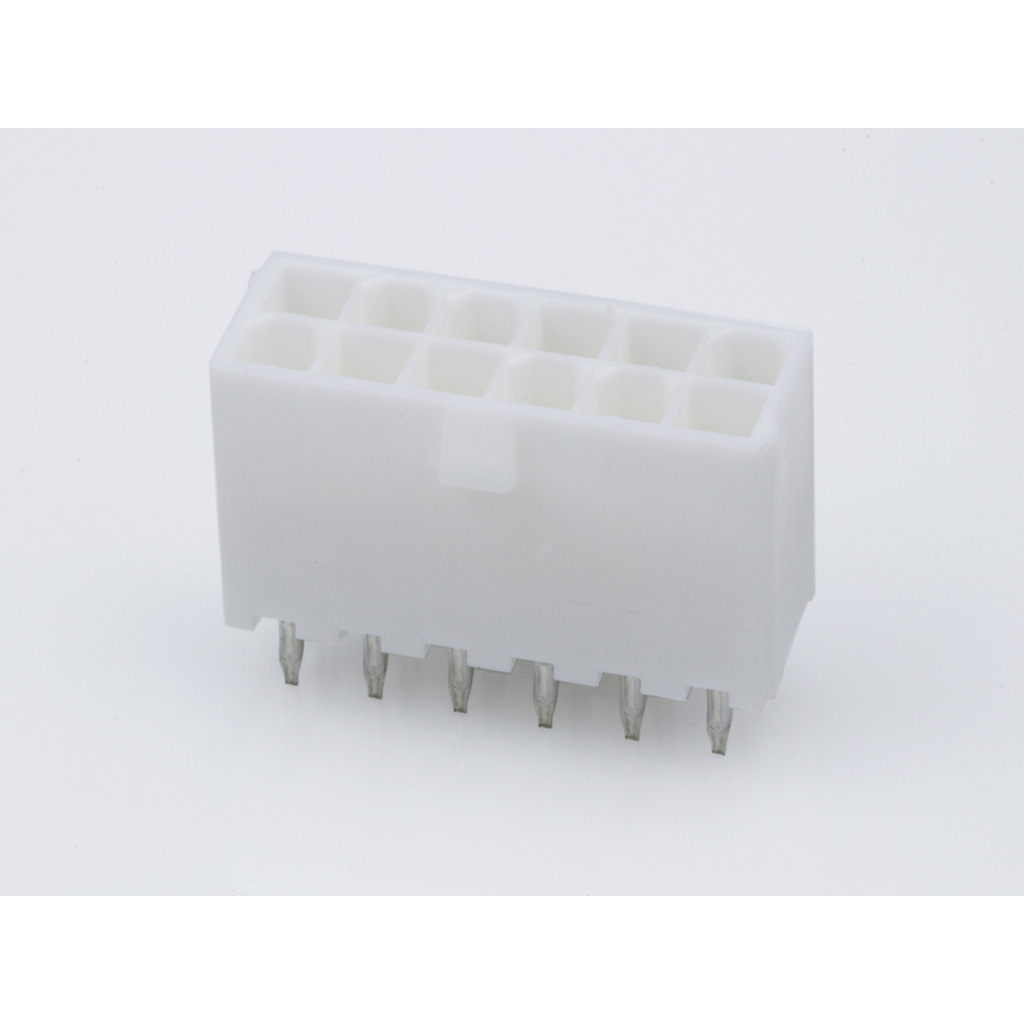

39310128

Conn Wire to Board HDR 12Power POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  12Power

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  4.2

• Body Orientation

  Straight

• Polarization Type

  Center Key

• Row Spacing (mm)

  4.2

• Maximum Current Rating (A)

  9/Contact

• Maximum Voltage Rating

  600VDC|600VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  30

• Packaging

  Bag

• Product Weight (g)

  3.341

• Product Length (mm)

  26.7

• Product Height (mm)

  12.8

• Tradename

  Mini-Fit Jr

• Tail Length (mm)

  3.5

• Mounting

  Through Hole
