Connector Headers and PCB Receptacles

39295023

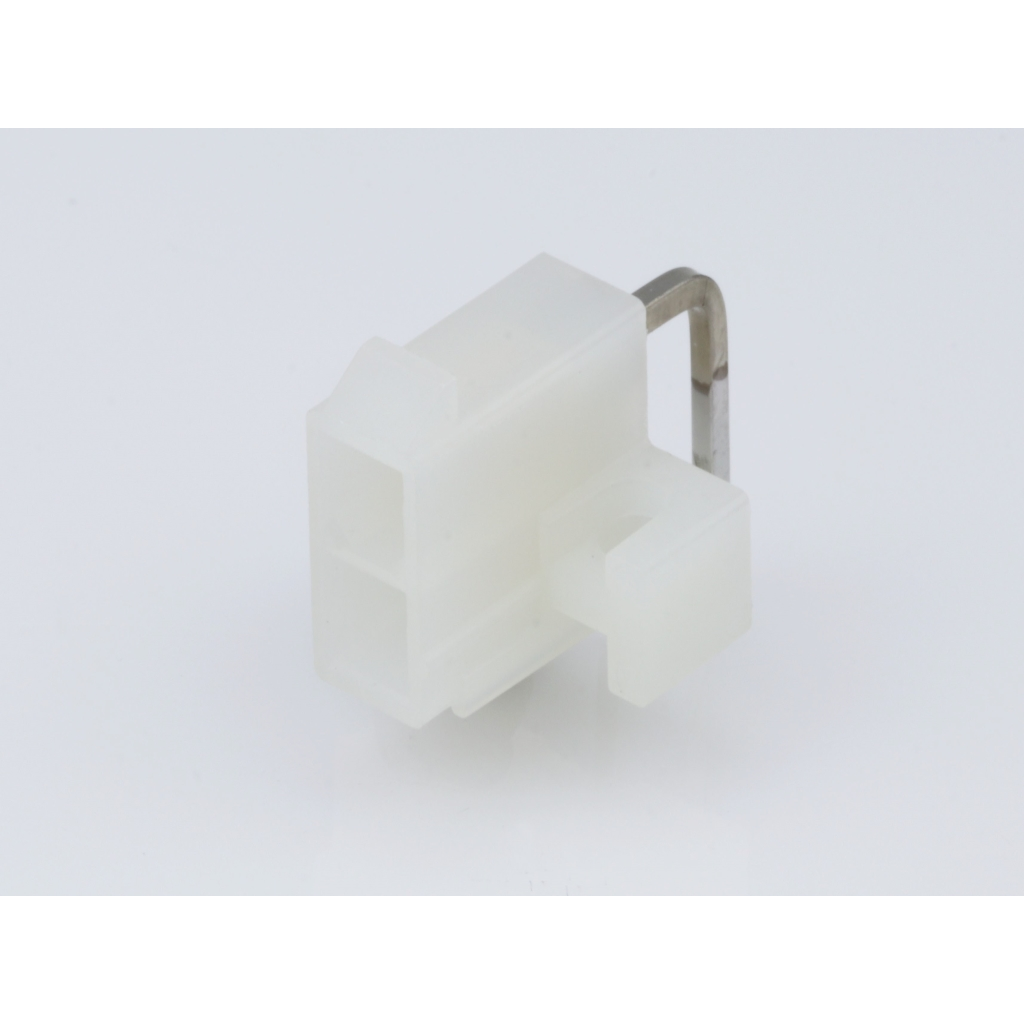

Conn Shrouded Header (4 Sides) HDR 2Power POS Solder RA Side Entry Thru-Hole Mini-Fit Jr. Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  2Power

• Number of Rows

  2

• Termination Method

  Solder

• Body Orientation

  Right Angle

• Polarization Type

  Center Key

• Row Spacing (mm)

  4.2

• Maximum Current Rating (A)

  13/Contact

• Maximum Voltage Rating

  600V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  30

• Packaging

  Bag

• Product Weight (g)

  1.091

• Product Length (mm)

  15.4

• Product Depth (mm)

  20.1

• Product Height (mm)

  11.4

• Tradename

  Mini-Fit Jr.

• Mounting

  Through Hole
