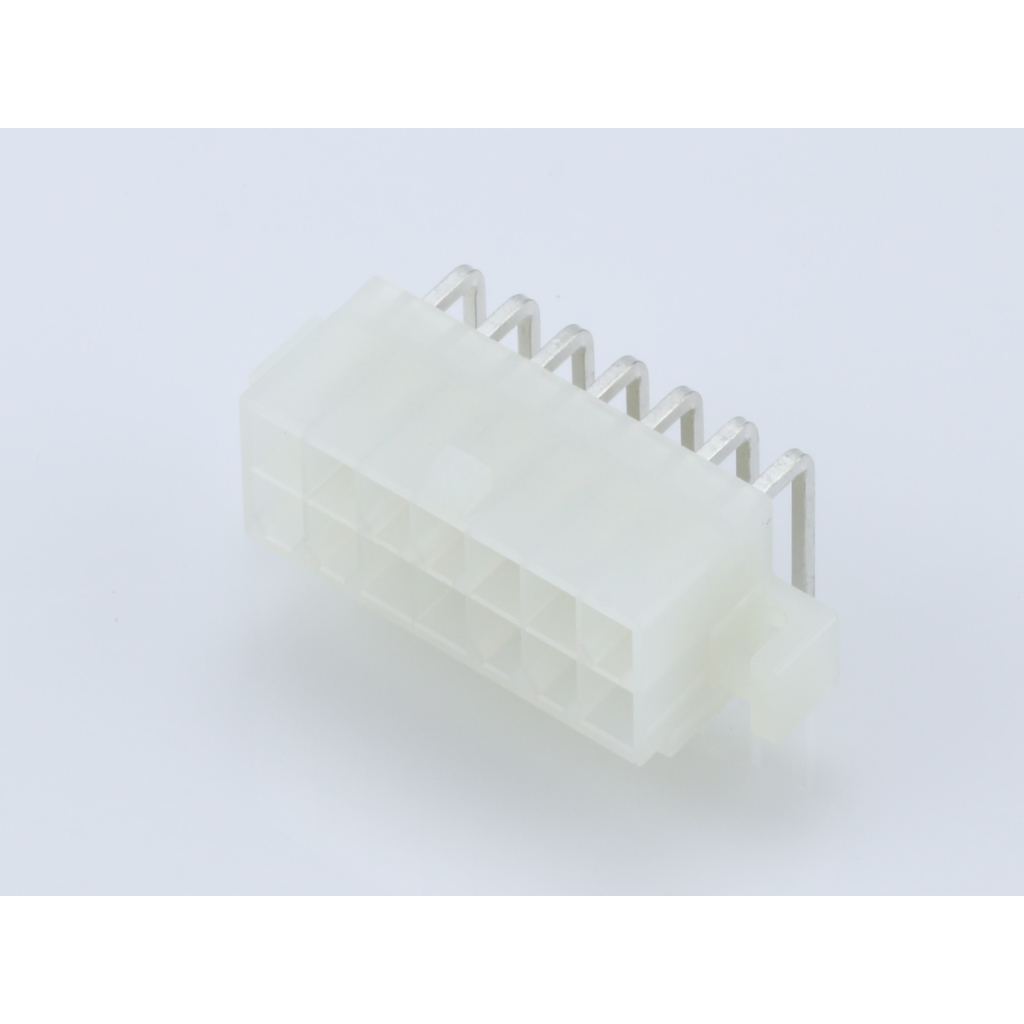

Molex39-29-1148Connector Headers and PCB Receptacles
Conn Shrouded Header (4 Sides) HDR 14Power POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr. Bag
| Compliant | |
| EAR99 | |
| Active | |
| Automotive | No |
| PPAP | No |
| Shrouded Header (4 Sides) | |
| HDR | |
| 14Power | |
| 2 | |
| Solder | |
| 4.2 | |
| Right Angle | |
| Center Key | |
| 4.2 | |
| 13/Contact | |
| 600V | |
| 1000 | |
| 10 | |
| -40 | |
| 105 | |
| 30 | |
| Bag | |
| 5.055 | |
| 40.6 | |
| 20.1 | |
| 11.4 | |
| Mini-Fit Jr. | |
| Contact Plating Thickness | 2.54um |
| Through Hole |
