Blowers and Fans

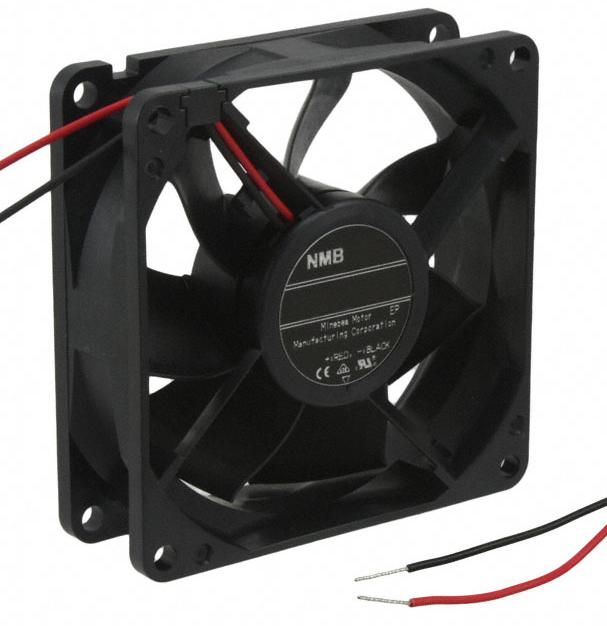

3110SB-04W-B40-E00

DC Fan Axial Ball Bearing 12V 6V to 13.8V 36CFM 26dB 80 X 80 X 25mm

MinebeaMistumi – NMB Technologies

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8414.59.65.90

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  Axial

• Category

  DC Fan

• Maximum Voltage Rating (V)

  12

• Input Voltage Range (V)

  6 to 13.8

• Line Current (A)

  0.09

• Power Rating (W)

  1.1

• Typical Speed (r/min)

  2700

• Maximum Airflow (CFM)

  36

• Maximum Pressure

  0.12inH2O

• Noise Level (dB)

  26

• Bearings

  Ball

• Shape

  Square

• Size (Metric) (mm)

  80 X 80 X 25

• Mounting

  Flange Mount

• Protection

  Auto Restart|Polarity

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  70

• Product Weight (g)

  80

• Product Length (Metric) (mm)

  80

• Product Depth (Metric) (mm)

  80

• Product Height (Metric) (mm)

  25
