EEPROM

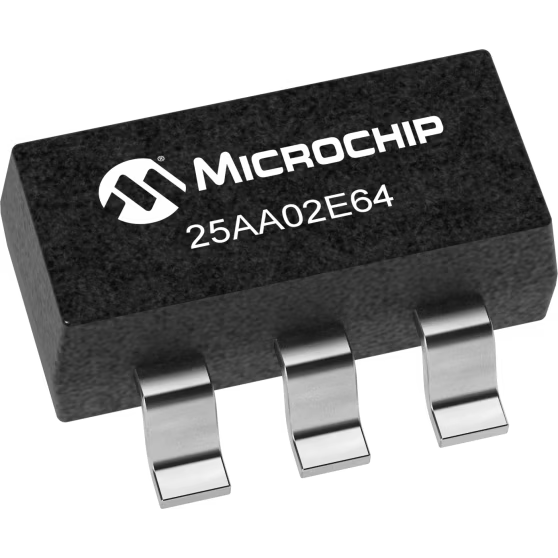

25AA02E64T-I/OT

EEPROM Serial-SPI 2K-bit 256 x 8 2.5V/3.3V/5V 6-Pin SOT-23 T/R

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.32.00.51

• Automotive

  No

• PPAP

  No

• Chip Density (bit)

  2K

• Organization

  256x8

• Programmability

  Yes

• Data Retention (Year)

  200(Min)

• Max. Access Time (ns)

  50

• Maximum Operating Frequency (MHz)

  10

• Interface Type

  Serial-SPI

• Minimum Operating Supply Voltage (V)

  1.8

• Typical Operating Supply Voltage (V)

  2.5|3.3|5

• Maximum Operating Supply Voltage (V)

  5.5

• Operating Current (mA)

  5

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Hardware Data Protection

  Yes

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  1.15 mm

• Package Width

  1.6 mm

• Package Length

  2.9 mm

• PCB changed

  6

• Standard Package Name

  SOT

• Supplier Package

  SOT-23

• Pin Count

  6

• Lead Shape

  Gull-wing
