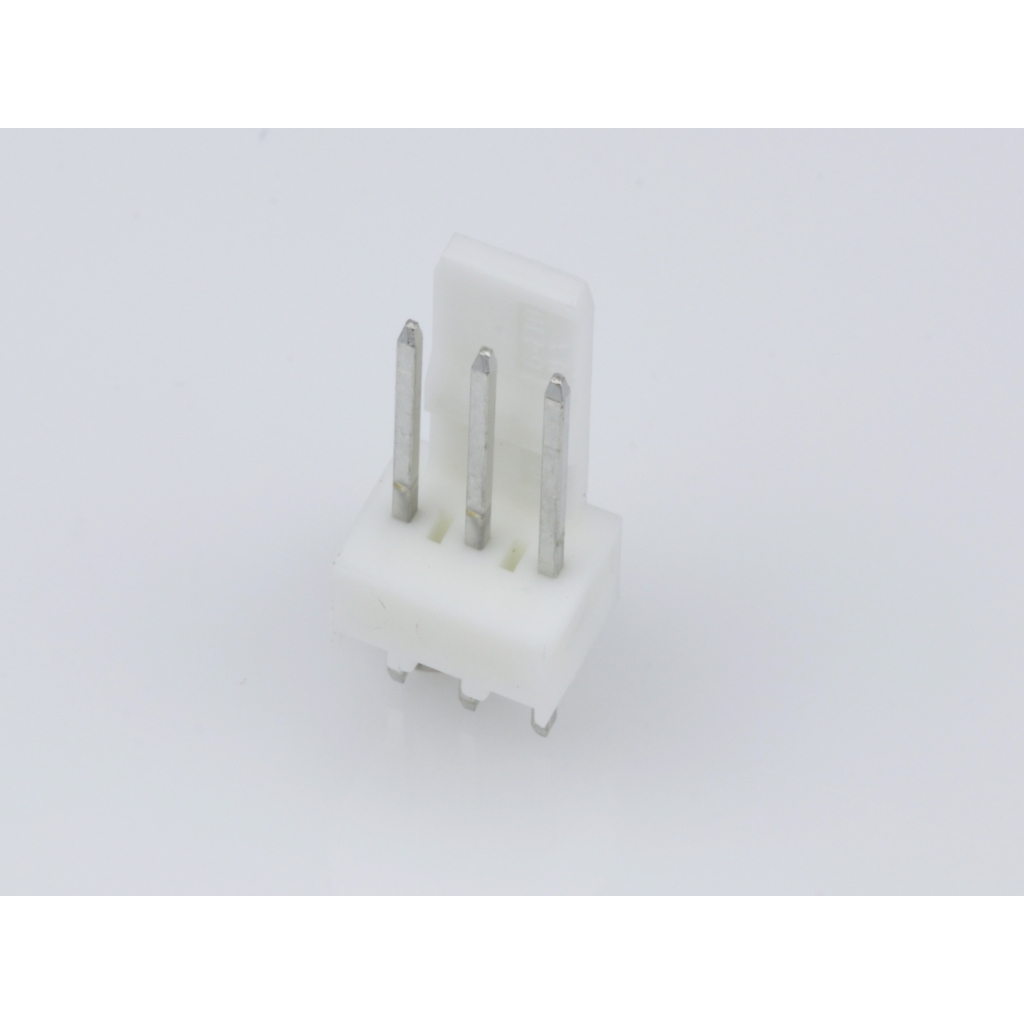

Connector Headers and PCB Receptacles

22-27-2031

Conn Wire to Board HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole KK Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  3

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Maximum Current Rating (A)

  4/Contact

• Maximum Voltage Rating

  500VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  80

• Mating Cycle (Cycles)

  25

• Packaging

  Bag

• Product Weight (g)

  0.315

• Product Length (mm)

  7.62

• Product Depth (mm)

  5.8

• Product Height (mm)

  11.7

• Tradename

  KK

• Contact Plating Thickness

  (2.54/1.27)um

• Tail Length (mm)

  3.56

• Mounting

  Through Hole
