Connector Headers and PCB Receptacles

22057088

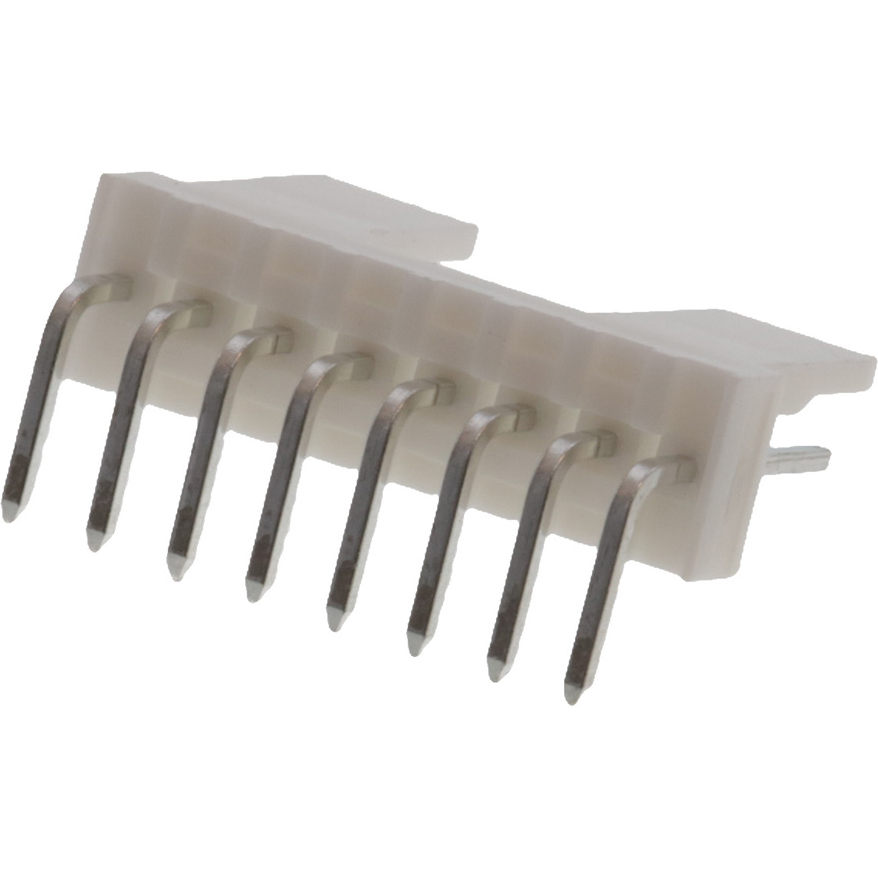

Conn Wire to Board HDR 8 POS 2.54mm Solder RA Top Entry Thru-Hole KK Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  8

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  4/Contact

• Maximum Voltage Rating

  500V

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  80

• Mating Cycle (Cycles)

  25

• Packaging

  Bag

• Product Weight (g)

  1

• Product Length (mm)

  20.32

• Product Depth (mm)

  14.42

• Product Height (mm)

  5.8

• Tradename

  KK

• Tail Length (mm)

  3.8

• Mounting

  Through Hole
