Cable Assembly Other

2162701032

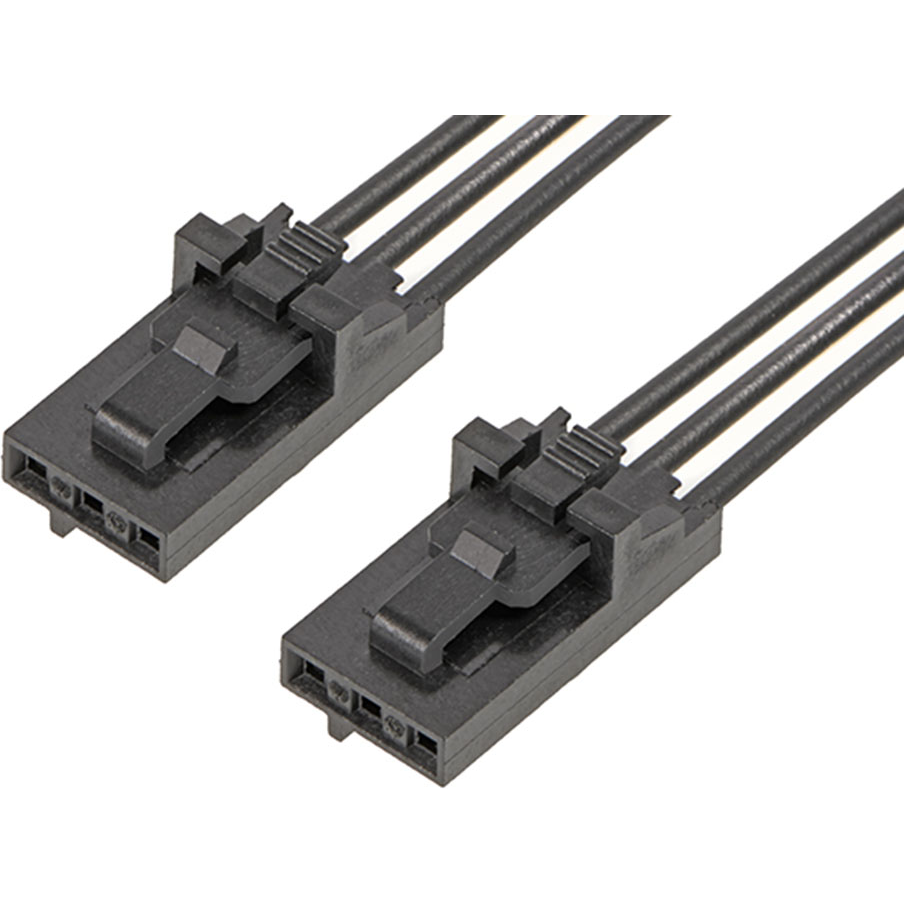

Cable Assembly UL 11028 0.15m 22AWG Wire to Board to Wire to Board 3 to 3 POS F-F Crimp-Crimp Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8544.42.90.90

• Automotive

  No

• PPAP

  No

• Cable Type

  UL 11028

• Number of Contacts

  3 to 3

• Gender

  F-F

• Connector Type A

  Wire to Board

• Connector Type B

  Wire to Board

• Cable Length (m)

  0.15

• Contact Termination

  Crimp-Crimp

• Wire Size (AWG)

  22

• Color

  Black

• Maximum Voltage Rating

  600VDC|600VAC

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Packaging

  Bag

• Jacket Material

  Polyphenylene Ether

• Contact Plating

  Tin

• Contact Material

  Phosphor Bronze

• Maximum Current Rating (A)

  3/Contact

• Connector Orientation

  Straight to Straight
