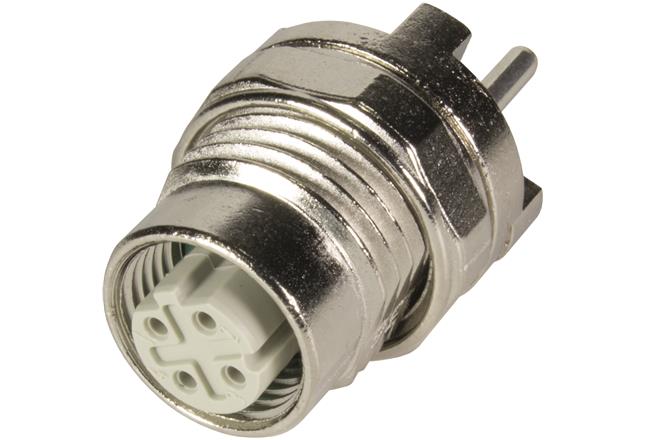

Connector Circular

21033816410

Conn M12 Circular SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port

HARTING Technology Group

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  M12 Circular

• Gender

  RCP

• Mounting

  Through Hole

• Body Orientation

  Straight

• Number of Ports

  1

• Number of Contacts

  4

• Number of Terminals

  4

• Contact Gender

  SKT

• Termination Method

  Solder

• Contact Material

  Copper Alloy

• Contact Plating

  Gold Over Nickel

• Shell Material

  Zinc Die Cast

• Maximum Current Rating (A)

  4

• Maximum Voltage Rating

  50V

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• IP Rating

  IP20

• Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  10

• Mating Cycle (Cycles)

  100

• Product Diameter (mm)

  19.1

• Product Length (mm)

  23.55
