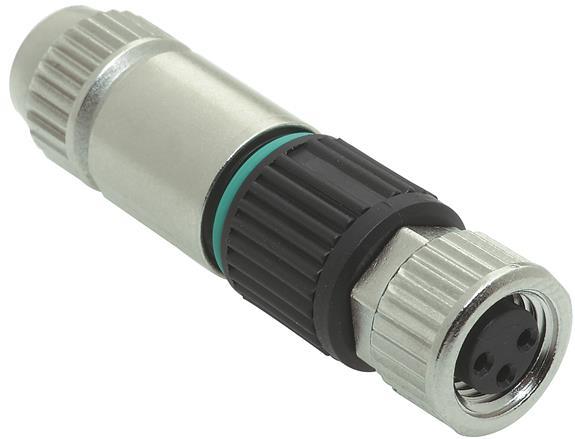

Connector Circular

21021512405

Conn Circular DIN SKT 4 POS ST Cable Mount 4 Terminal 1 Port

HARTING Technology Group

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.20

• Automotive

  No

• PPAP

  No

• Type

  Circular DIN

• Gender

  RCP

• Mounting

  Cable Mount

• Body Orientation

  Straight

• Number of Ports

  1

• Number of Contacts

  4

• Number of Terminals

  4

• Contact Gender

  SKT

• Wire Size (AWG)

  22-26

• Less Contact

  No

• Contact Material

  Copper Alloy

• Contact Plating

  Gold Over Nickel

• Maximum Current Rating (A)

  4

• Maximum Voltage Rating

  32V

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• IP Rating

  IP67

• Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  10

• Mating Cycle (Cycles)

  100

• Product Diameter (mm)

  11.8

• Product Length (mm)

  42.5
