Gate and Power Drivers

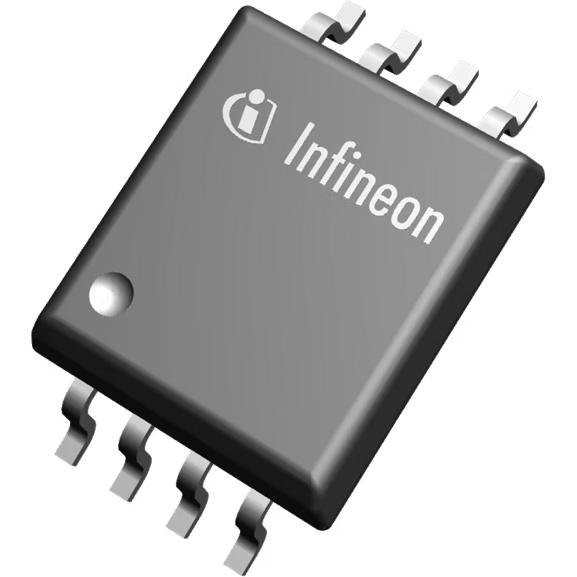

1ED3120MC12HXUMA1

Driver 5.5A 2-OUT High Side Inv/Non-Inv 8-Pin DSO T/R

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Driver Type

  High Side

• Driver Configuration

  Inverting|Non-Inverting

• Number of Drivers

  2

• Type

  IGBT|MOSFET|SiCFET

• Number of Outputs

  2

• Maximum Rise Time (ns)

  30

• Maximum Fall Time (ns)

  30

• Maximum Operating Frequency (kHz)

  1000

• Maximum Propagation Delay Time (ns)

  90(Typ)

• Input Logic Compatibility

  CMOS|3V to 15V

• Minimum Operating Supply Voltage (V)

  3.1|10

• Maximum Operating Supply Voltage (V)

  15|35

• Typical Input Low Threshold Voltage (V)

  1.1(Max)

• Typical Input High Threshold Voltage (V)

  2.5(Min)

• Peak Output Current (A)

  5.5(Typ)

• Output Resistance (Ohm)

  0.75|0.95

• Maximum Power Dissipation (mW)

  700

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Special Features

  Under Voltage Lockout

• Latch-Up Proof

  No

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  2.35

• Package Width

  7.5

• Package Length

  6.4

• PCB changed

  8

• Standard Package Name

  SO

• Supplier Package

  DSO

• Pin Count

  8
