Connector Headers and PCB Receptacles

15-24-7241

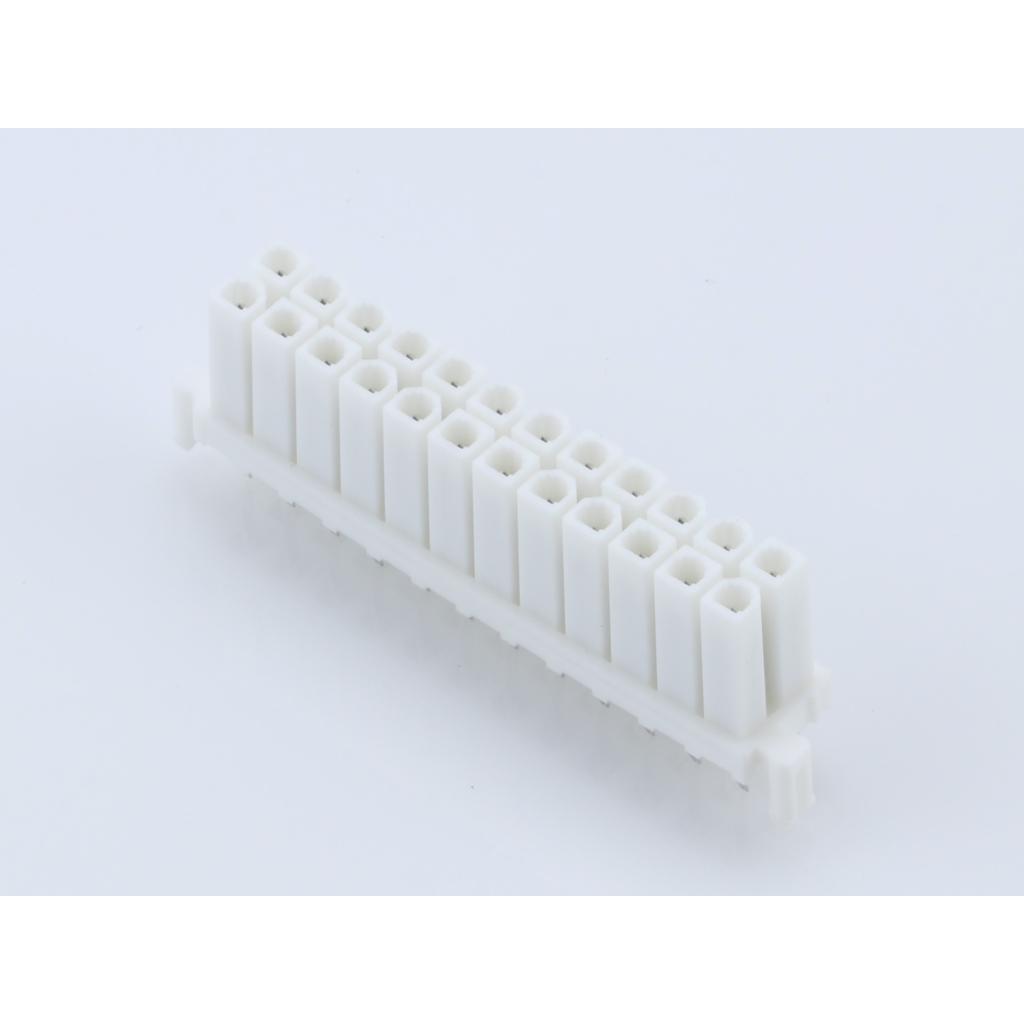

Conn Wire to Board RCP 24 POS 4.2mm Solder ST Thru-Hole Mini-Fit BMI Tray

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  RCP

• Number of Contacts

  24

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  4.2

• Body Orientation

  Straight

• Row Spacing (mm)

  4.2

• Maximum Current Rating (A)

  9/Contact

• Maximum Voltage Rating

  600VDC|600VAC

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  30

• Packaging

  Tray

• Product Weight (g)

  4.884

• Product Depth (mm)

  9.6

• Product Height (mm)

  11.33

• Tradename

  Mini-Fit BMI

• Mounting

  Through Hole
