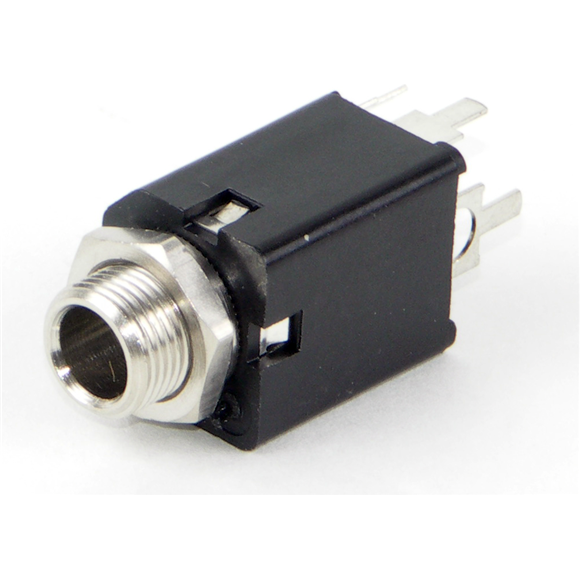

Switchcraft112APCXConnector Audio and Video
Conn Phone Jack F 2 POS Solder ST Thru-Hole 5 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Phone Jack | |
| F | |
| 2 | |
| 5 | |
| 1 | |
| Solder | |
| Straight | |
| Copper Alloy | |
| Nickel | |
| 15.87 | |
| 27.64 | |
| 15.87 | |
| Through Hole | |
| Polyester |
Utilize your audio and video with the phone jack 112APCX audio and video connector from Switchcraft. This F connector has 2 F contacts. It has a female type gender. This connector has a single port. It has a straight body orientation. This product is 15.87 mm long, 15.87 mm tall and 27.64 mm deep. Its 5 terminals use the solder termination method.
| EDA / CAD Models |
