Connector Headers and PCB Receptacles

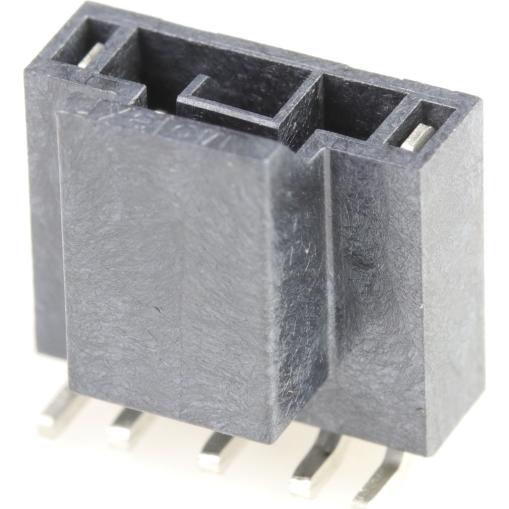

1054311103

Conn Wire to Board HDR 3Power POS 2.5mm Solder ST Top Entry SMD Nano-Fit T/R

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  3Power

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.5

• Body Orientation

  Straight

• Polarization Type

  Center Key

• Maximum Current Rating (A)

  6.5/Contact

• Maximum Voltage Rating

  250VDC|250VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  25

• Packaging

  Tape and Reel

• Product Weight (g)

  0.67

• Product Length (mm)

  10.73

• Product Height (mm)

  11.16

• Tradename

  Nano-Fit

• Contact Plating Thickness

  (0.76/1.25)um

• Mounting

  Surface Mount
