Connector Card Edge

10061913-103CLF

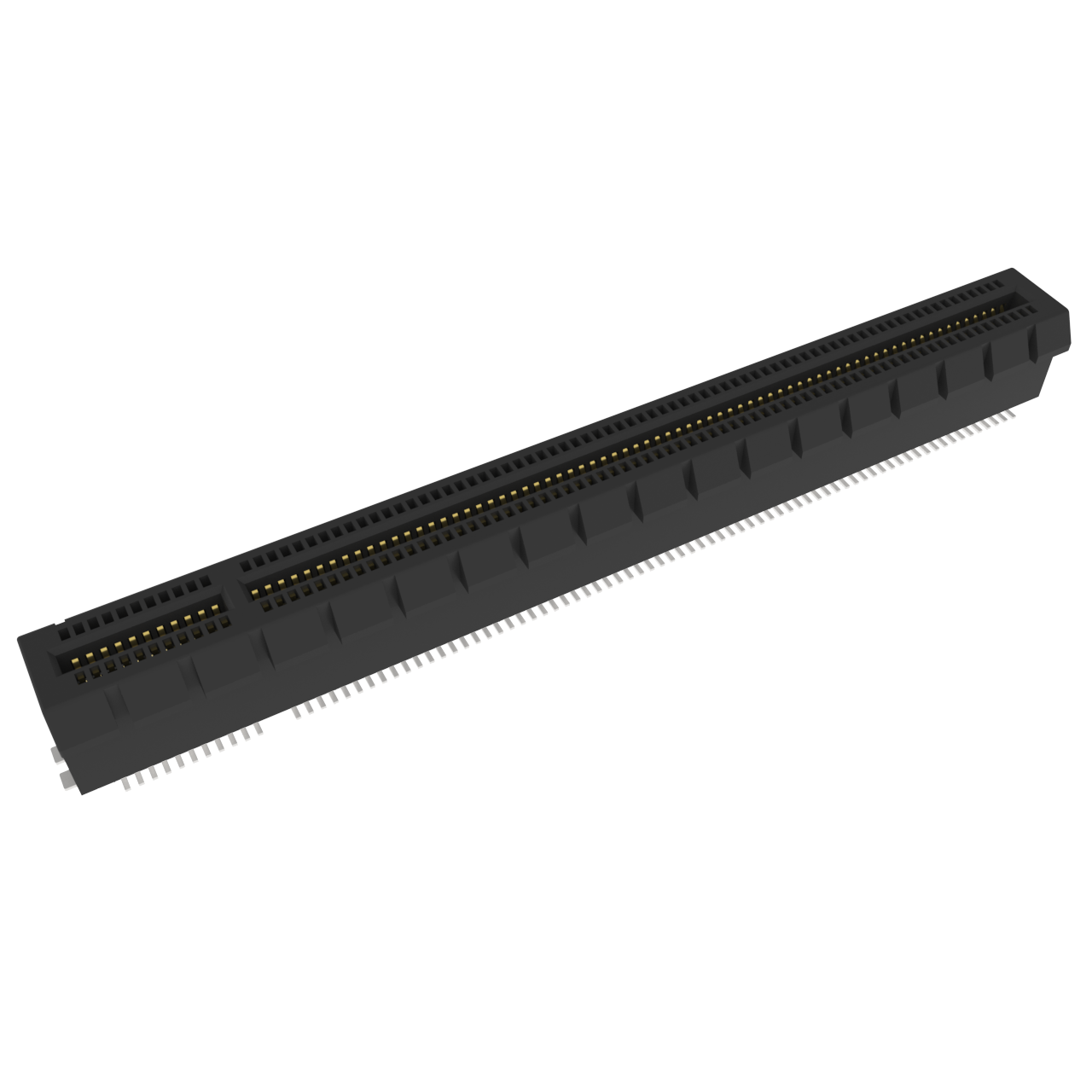

PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Surface Mount, x16, 164 Positions, 1.00mm (0.039in) Pitch

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  PCI Express Card Edge

• Gender

  RCP

• Card Type

  PCI Express

• Card Thickness (mm)

  1.57

• Number of Contacts

  164

• Number of Rows

  2

• Termination Method

  Solder

• Contact Type

  Cantilever Bellows

• Terminal Pitch (mm)

  1

• Body Orientation

  Straight

• Mounting Styles

  2 Plastic Pegs

• Maximum Current Rating (A)

  1.1/Contact

• Maximum Voltage Rating

  300VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  85

• Mating Cycle (Cycles)

  50

• Packaging

  Tray

• Product Length (mm)

  91

• Product Depth (mm)

  9.2

• Product Height (mm)

  11.1

• Tradename

  PCI Express®

• Mounting

  Surface Mount
